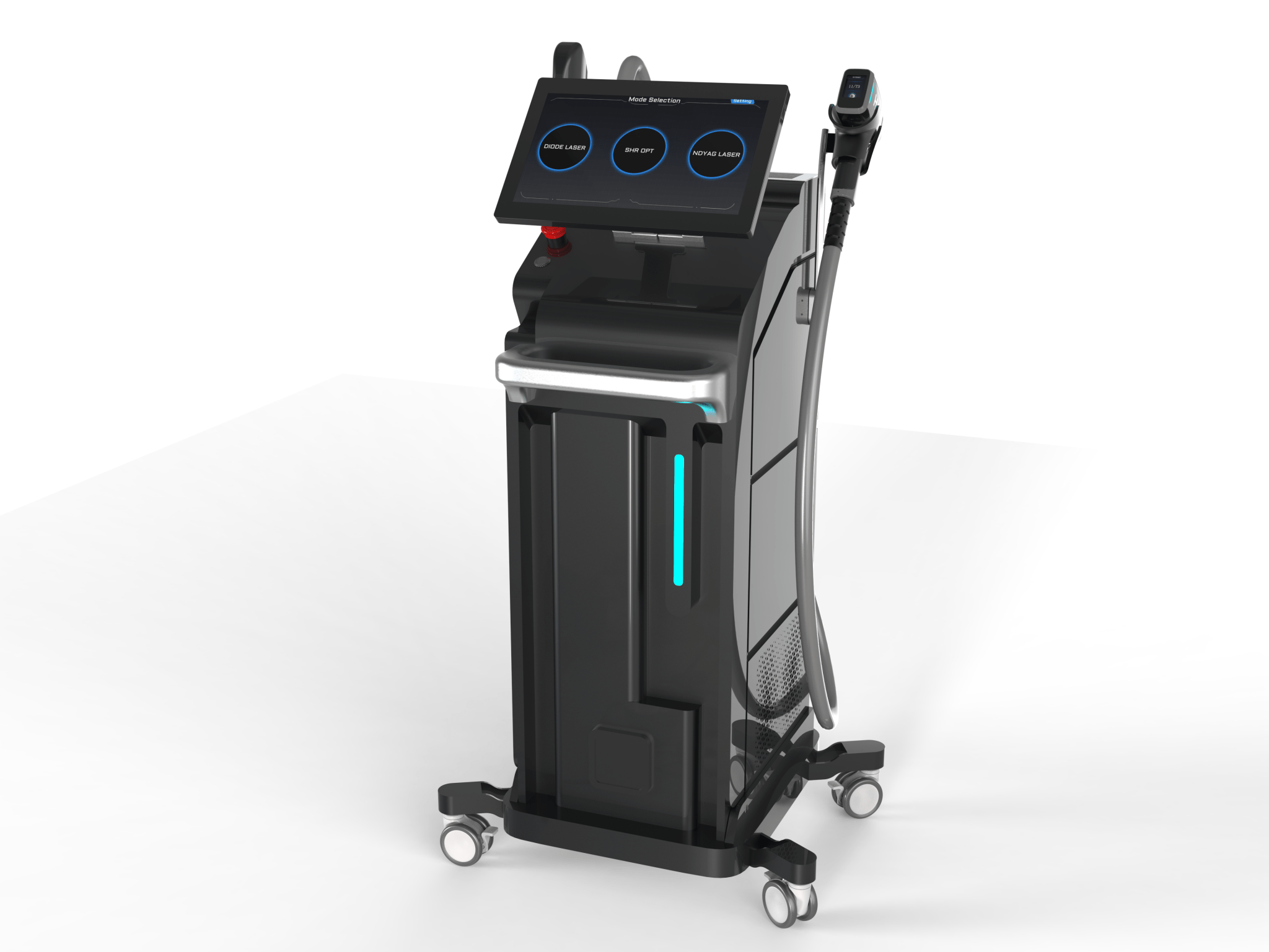

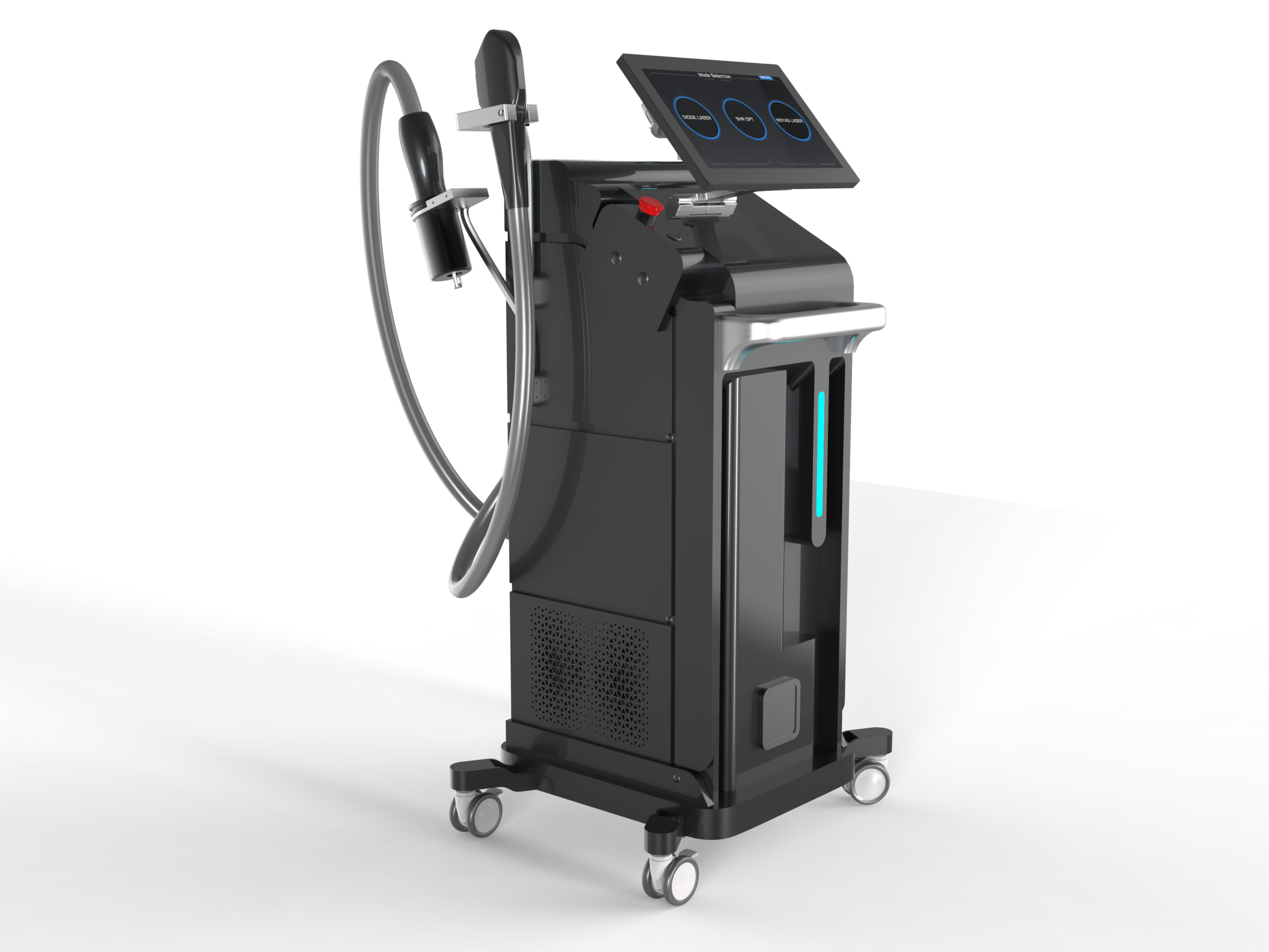

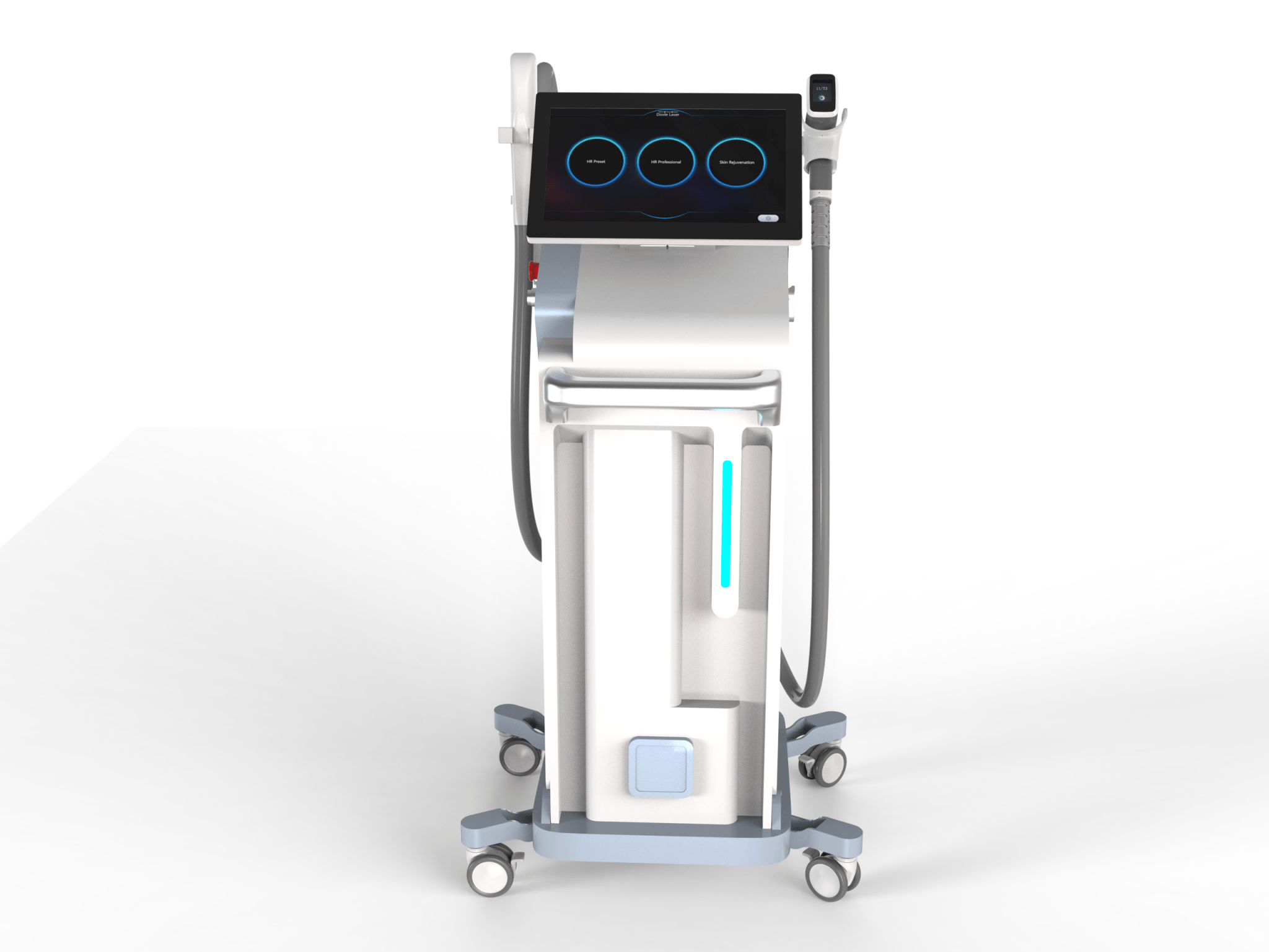

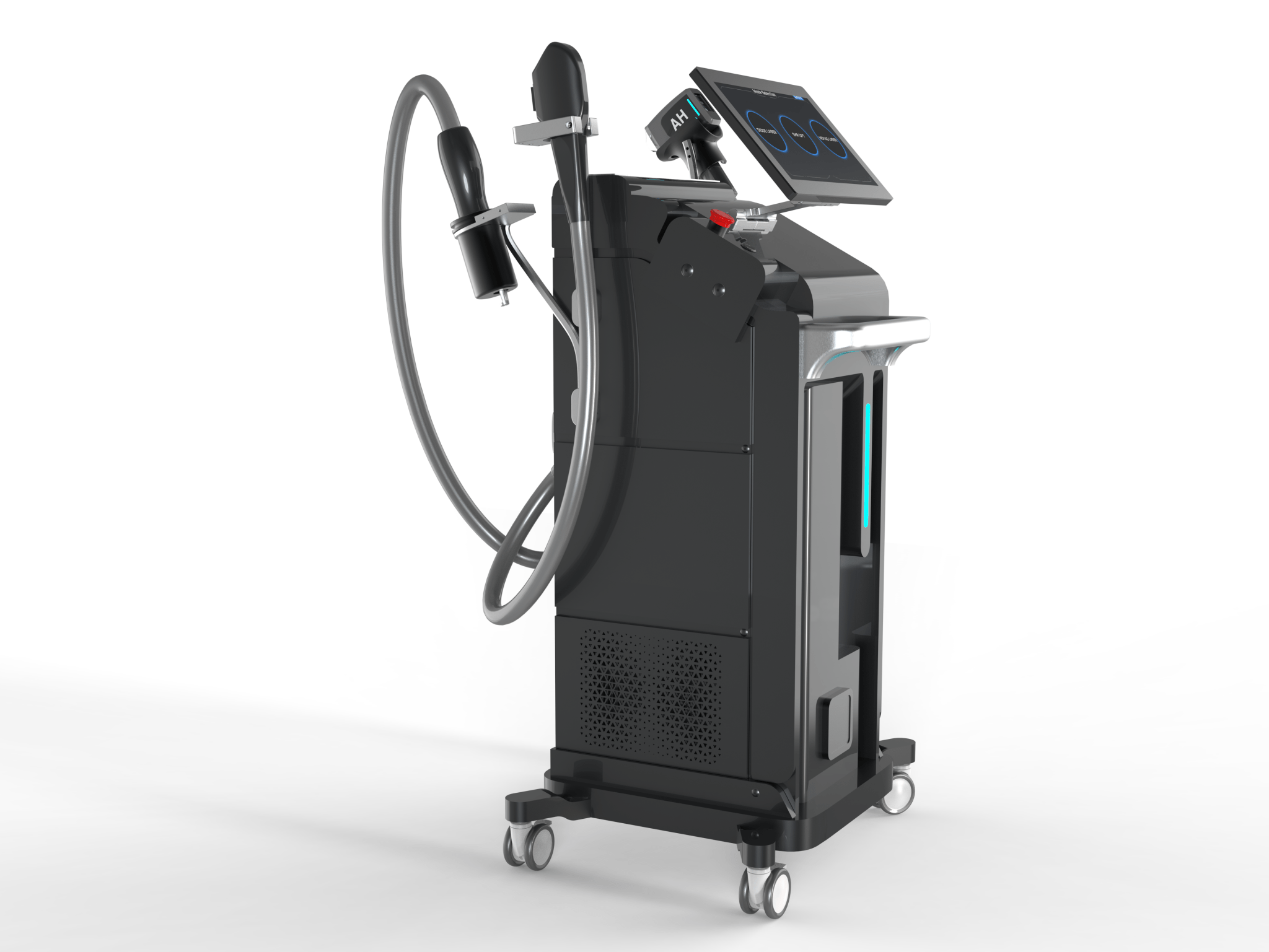

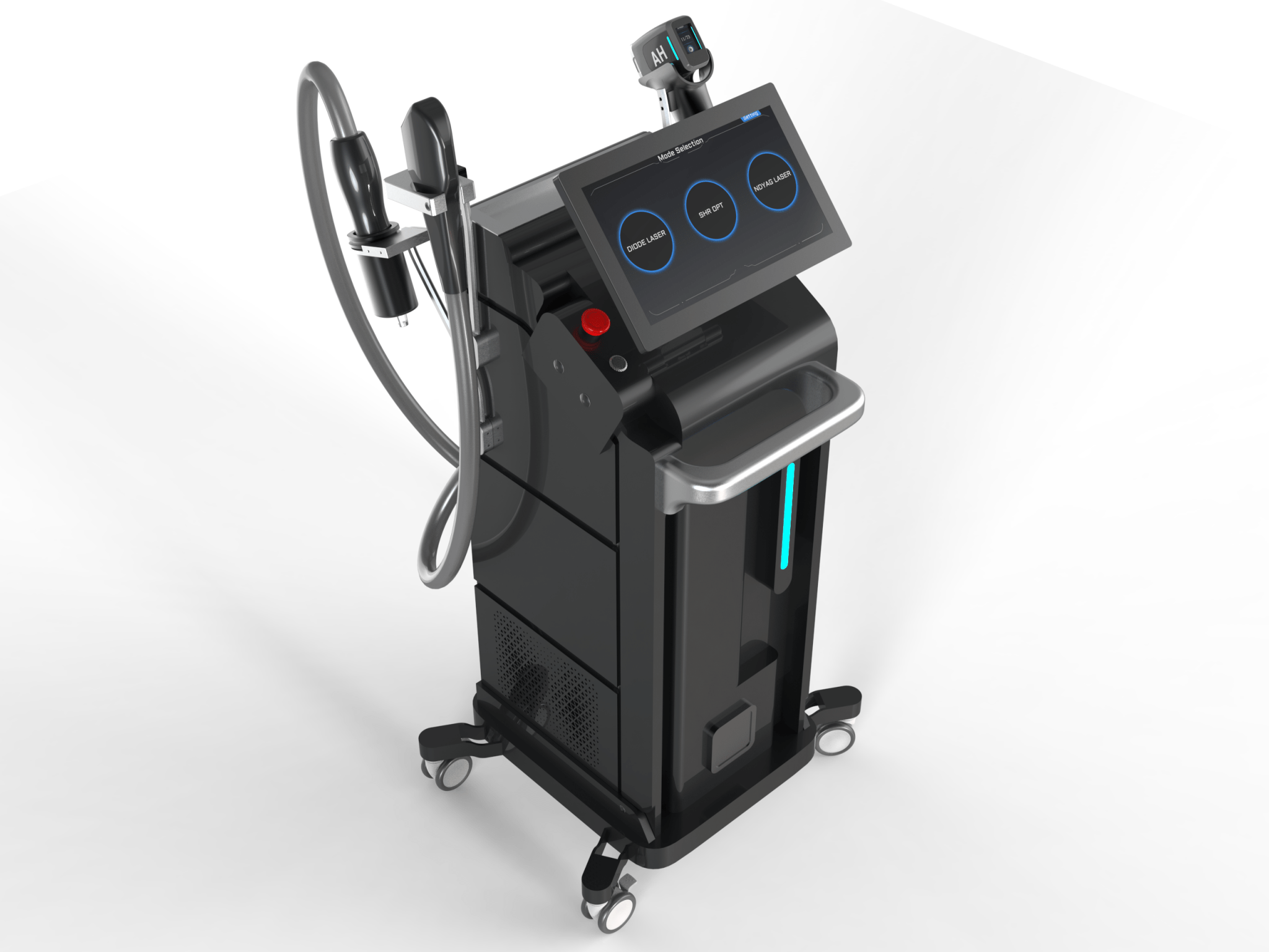

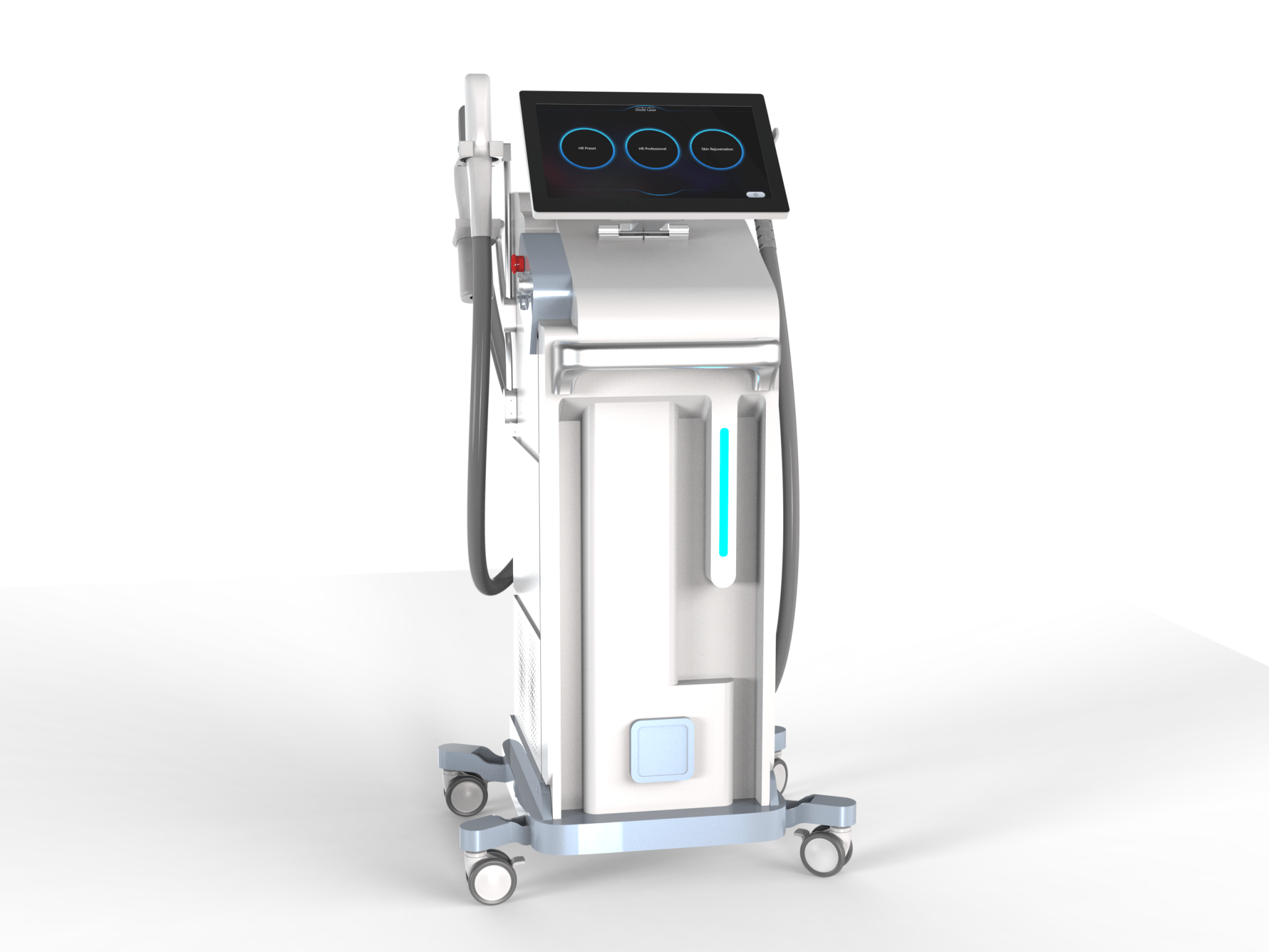

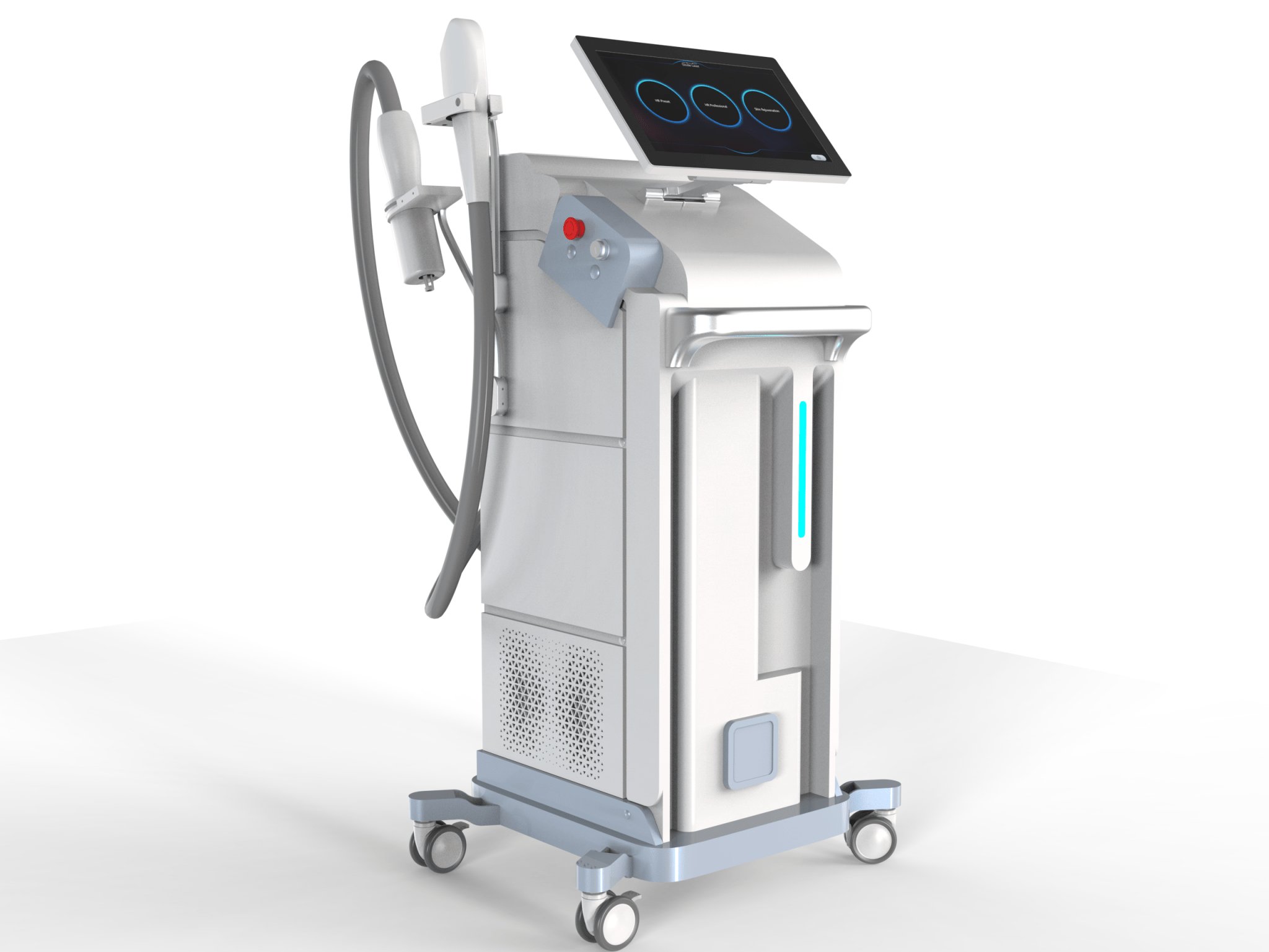

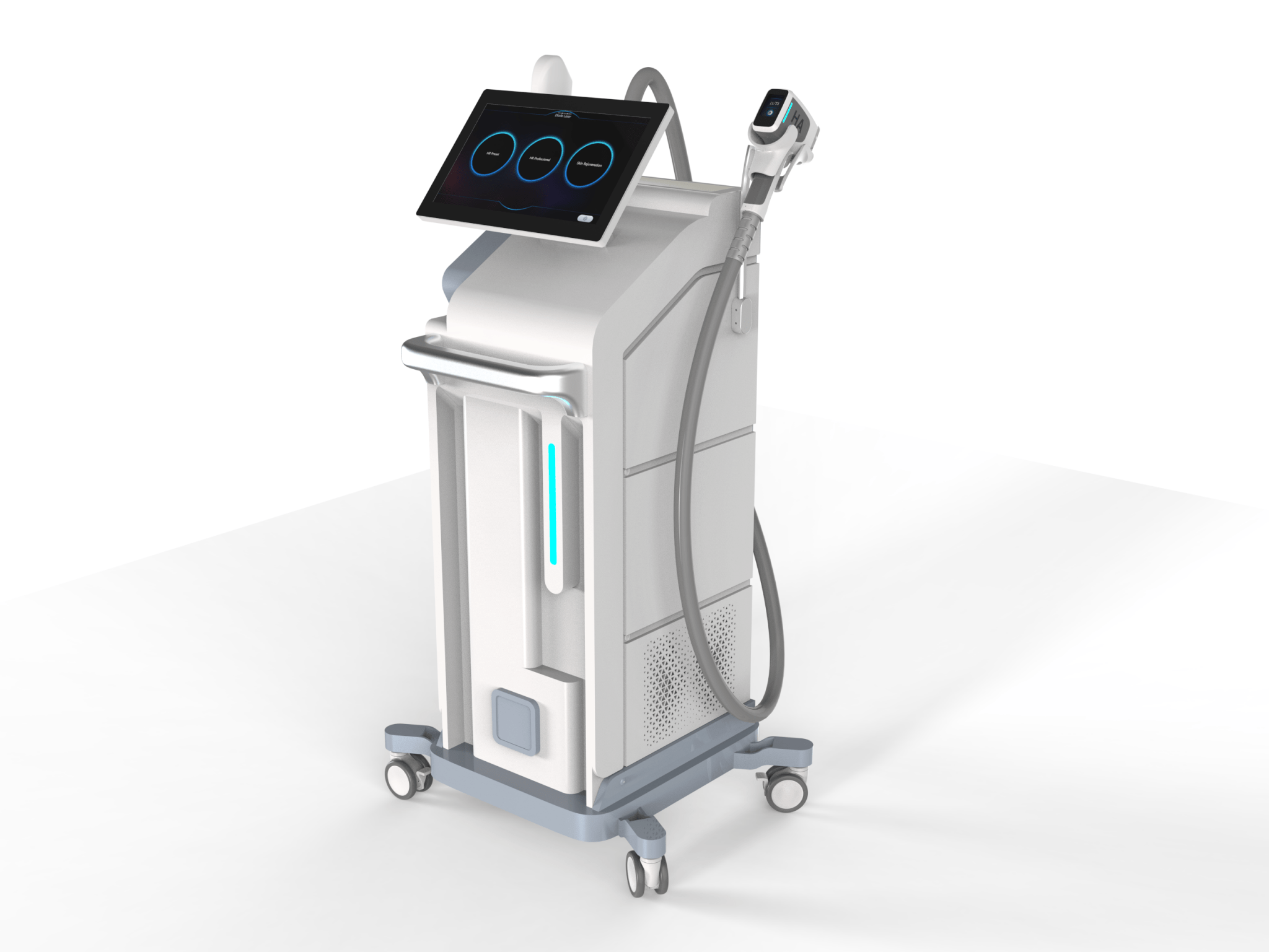

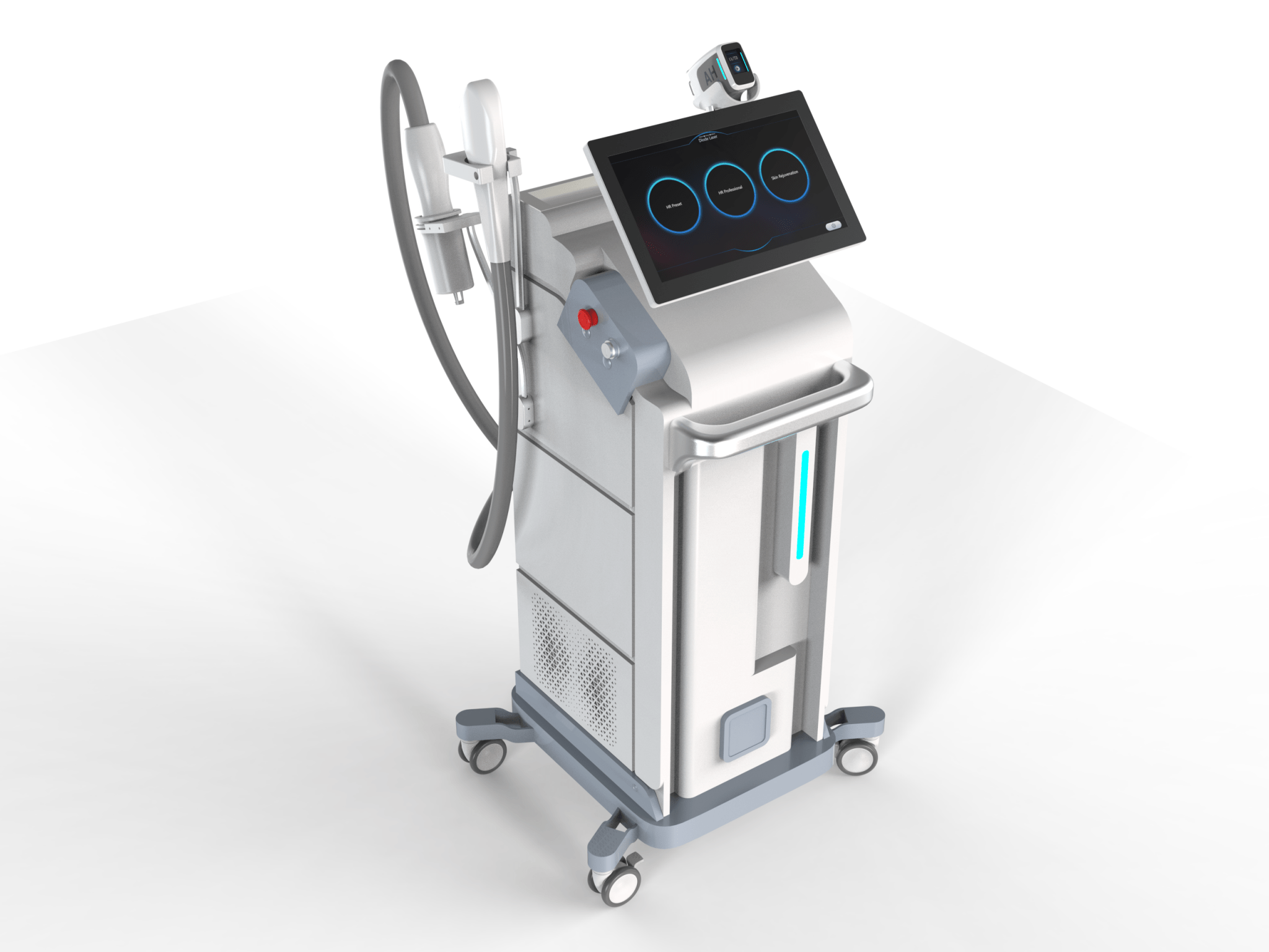

Shape Tactics Diode + SHR OPT + ND YAG All-in-One System

The Diode Laser system utilizes advanced light-based technology designed to support aesthetic procedures focused on the appearance of the skin. It offers smooth operation, consistent energy output, and comfortable use for various skin tones and hair types. SHR (Super Hair Removal) OPT technology provides even light distribution and optimized pulse control for efficient and gentle surface treatments. The ND YAG Laser system delivers precise energy for surface-level skin revitalization and the appearance of improved tone and clarity.

Specifications

Cooling System: TEC + Water + Fan + Sapphire Contact Cooling
Voltage: 220V/50Hz, 110V/60Hz

Diode Laser

Laser Power: 600W
Pulse Width: 10-400ms
Frequency: 1-10Hz
Wavelength: 755nm, 808nm, 940nm, 1064nm
Spot Size: 12mm x 20mm
Energy Fluence: 0-120J/cm2

SHR OPT

Light Source: Intense Pulse Light
Energy: 1-50J
Frequency: 1-10Hz
Cooling: 0-5
Spot Size: 10mm x 40mm
Wavelengths: 480nm, 530nm, 590nm, 640nm, 690nm

ND Yag Laser

Wavelength: 1064nm, 532nm, 755nm, 1320nm
Laser Energy: 20-1500mj
Frequency: 1Hz-10Hz
Pulse Width: 3ns-5ns

Note: After setting up the machine, it must be filled with water before use. Purified or distilled water is preferred and highly recommended. Failure to do so may result in damage to the machine.

Package Contents

1x Main Machine
1x Diode Handle
1x SHR OPT Handle

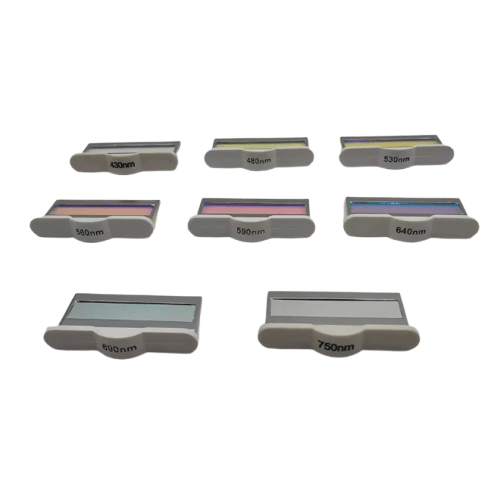

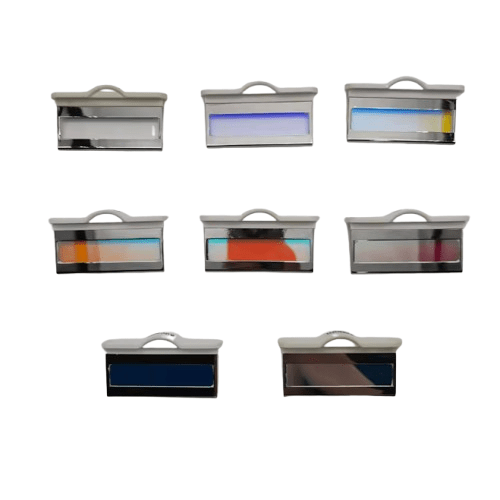

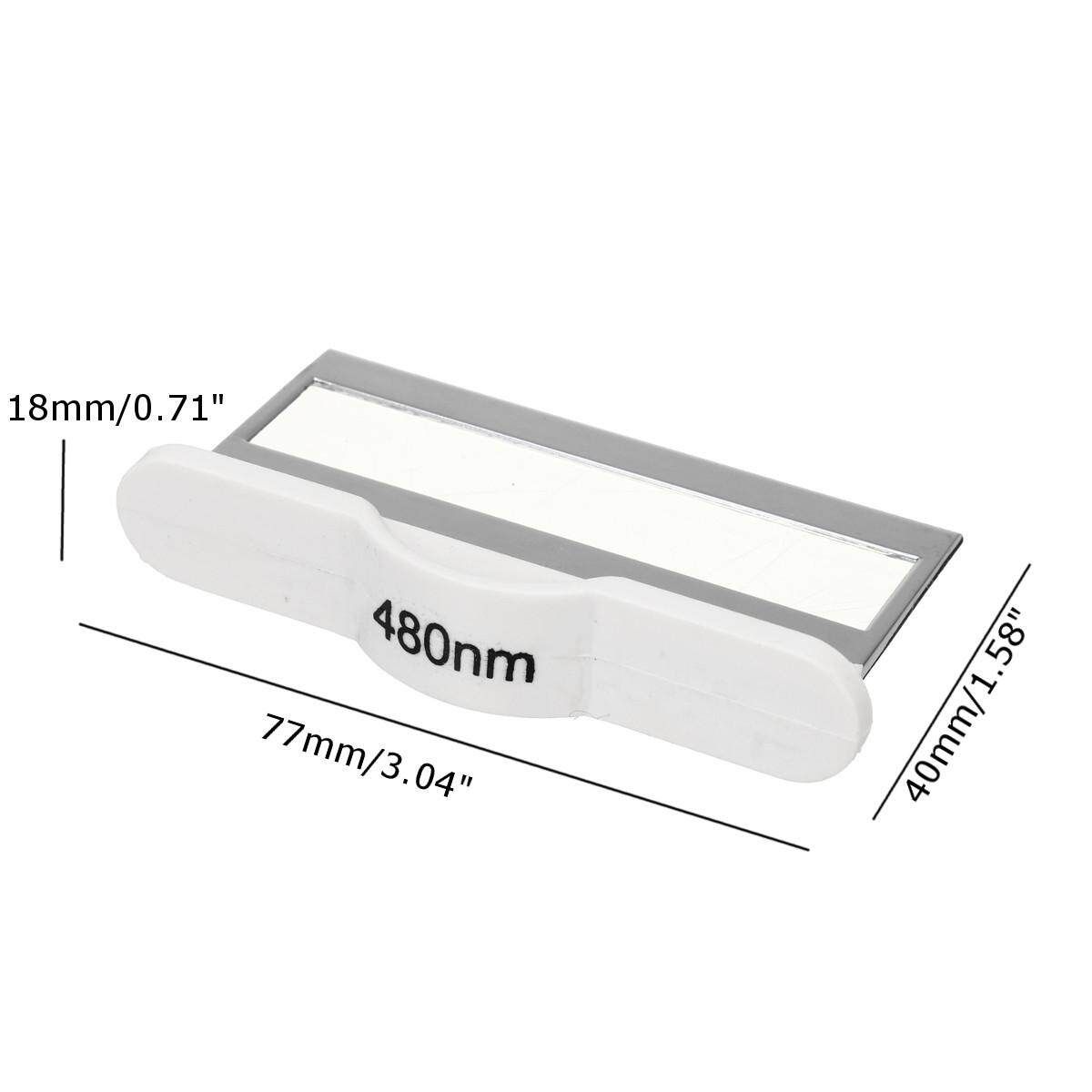

5x SHR OPT Filters
1x ND Yag Handle

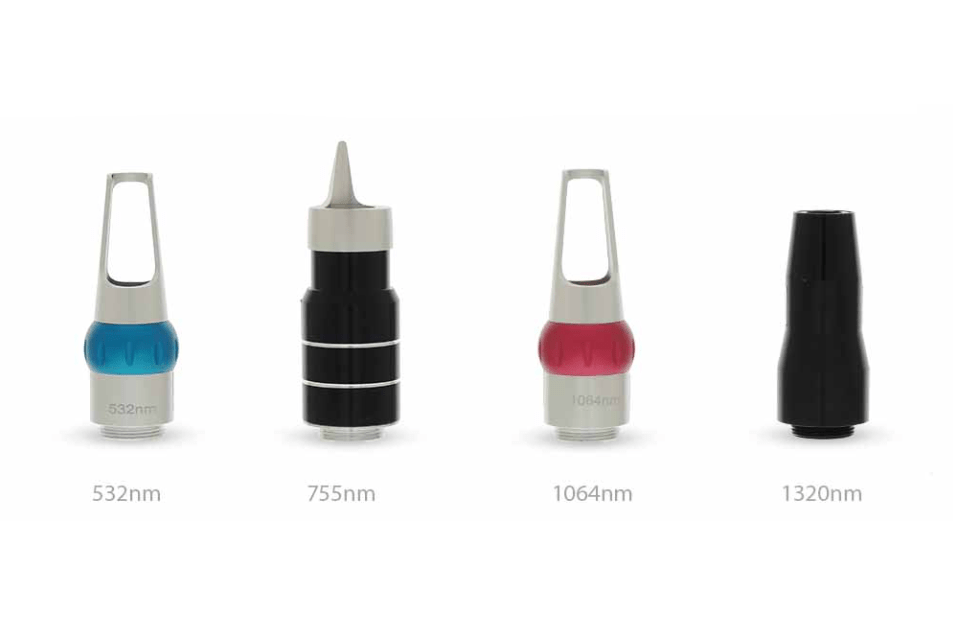

4x ND Yag Attachment Tips
1x Power Cord
