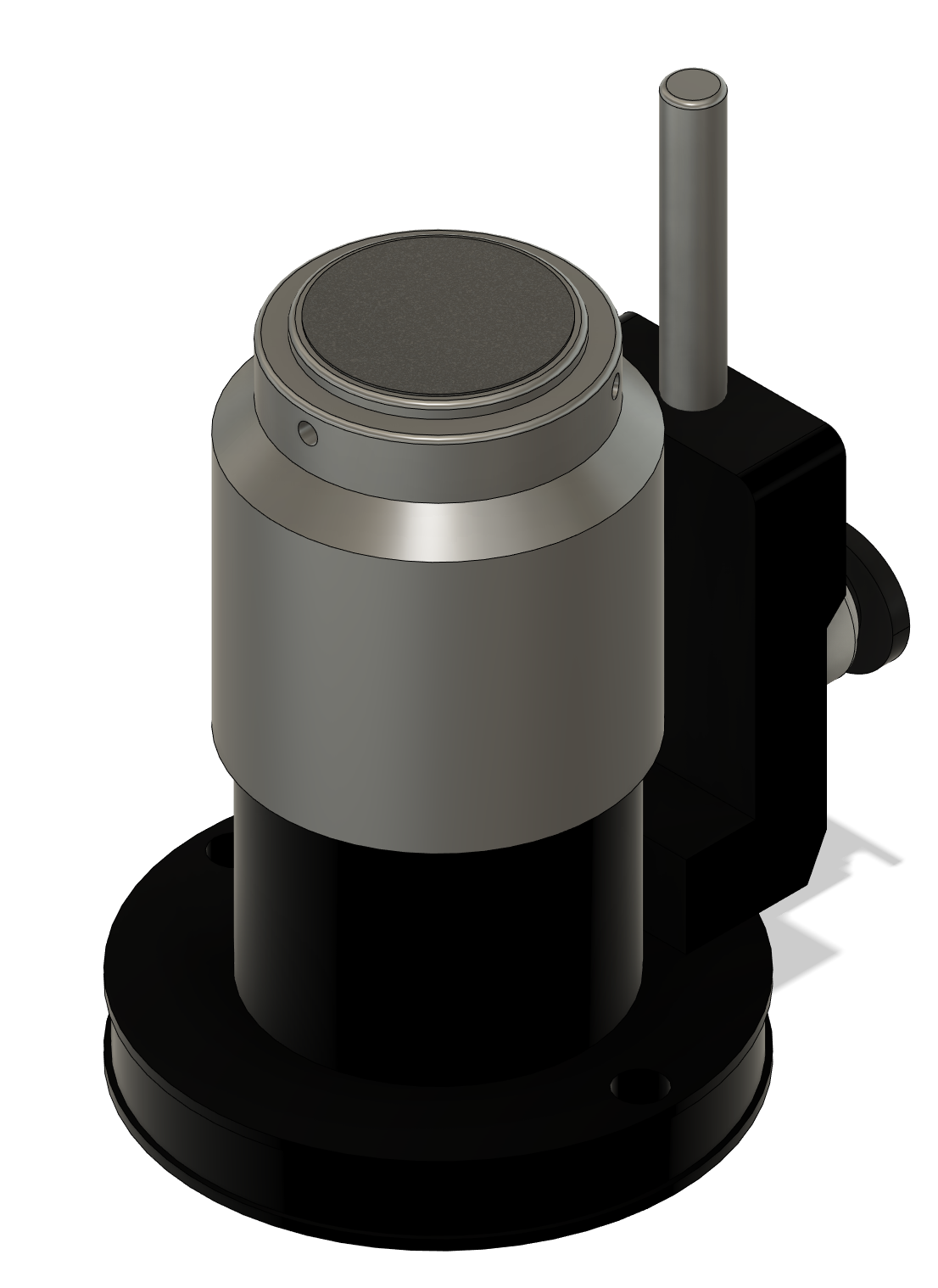

High-Precision CNC Tool Setter for MASSO Controllers

Automate tool-length measurement and establish repeatable Z offsets with the PwnCNC High-Precision CNC Tool Setter. Designed for MASSO-controlled CNC systems and compatible PwnCNC installations, it provides a reliable contact signal for tool changes, setup, and repeatable machining.

Key Features

• Measures tool length for accurate Z-offset calibration
• Normally closed, four-wire configuration
• GX12 4-pin aircraft connector for secure installation
• Partial metal-sleeved cable protection near the cutting area
• Waterproof, dustproof, and coolant-resistant construction
• Over-travel alarm and stable 24V signal output

Technical Specifications

• Accuracy: ±0.001 mm
• Stroke: 5 mm
• Contact force: 1.5 N
• Contact life: Up to 3 million cycles
• Contact rating: 24V DC at 20 mA
• Configuration: Normally closed, four-wire
• Housing: Alloy body with hardened contact surface

Compatibility

• Plug-and-play with supported PwnCNC machines and conversion kits
• Compatible with MASSO G3 and MASSO G3 Touch controllers
• Onefinity Elite installations require the appropriate PwnCNC tool-setter adapter
• Other controllers may require custom wiring or a compatible input interface

Optional Installation Accessories

For a cleaner enclosure installation, pair it with the PwnCNC Tool-Setter Cable Inlet. Onefinity Elite users can add the Onefinity Tool-Setter Adapter.

Documentation

View the tool-setter installation guide

Note: Verify controller input type, wiring, and probing logic before operation. Incorrect configuration can cause a crash or damage to the tool setter.
