Yescom Hydraulic Cable Terminal Wire Crimping Tool 10-Ton 9pcs

This 10-ton hydraulic wire crimping tool which has 9 dies! With the powerful crimper, you could crimp wires and butt connectors easily. Much easier to use than a pair of hand crimpers.The crimper tool crimps AWG 12 to 2/0 size copper and aluminum wires, lugs and compressible battery terminal ends, and comes with a wire cutter for added convenience.
Great for battery and welding cables, power wires and electrical cables etc.

High Quality:

• Hydraulic wire crimper features 9 sets of dies for providing large crimping range from 4 to 70 square millimeters
• Hydraulic Design

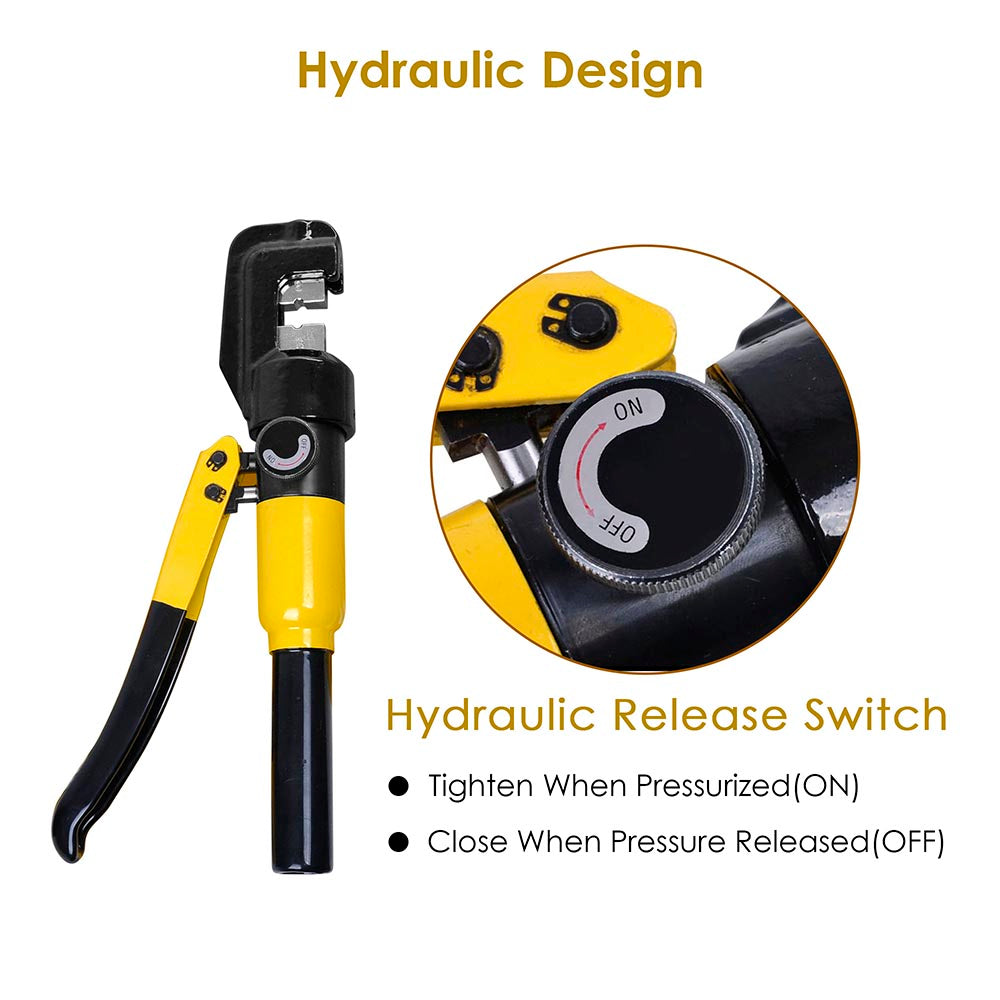

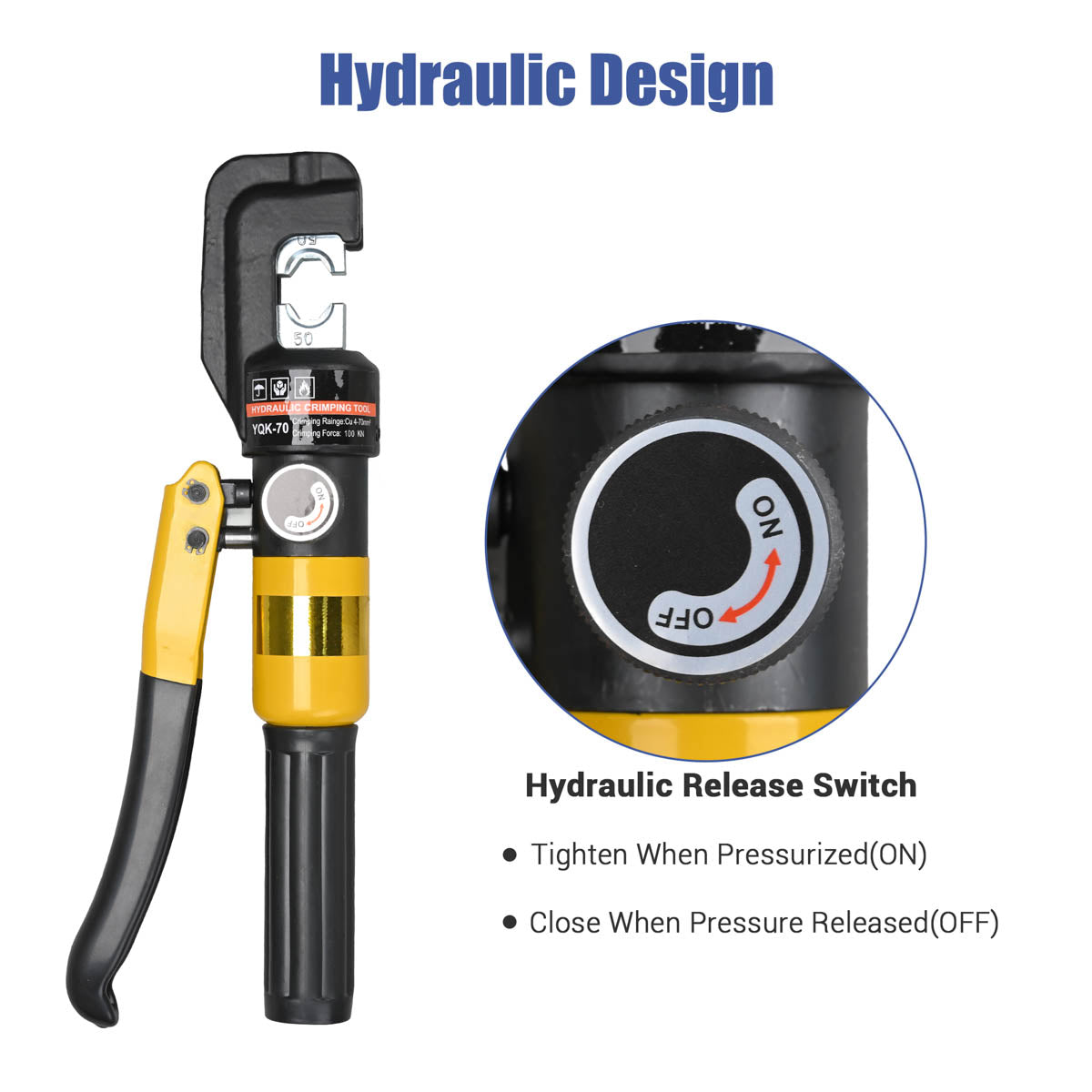

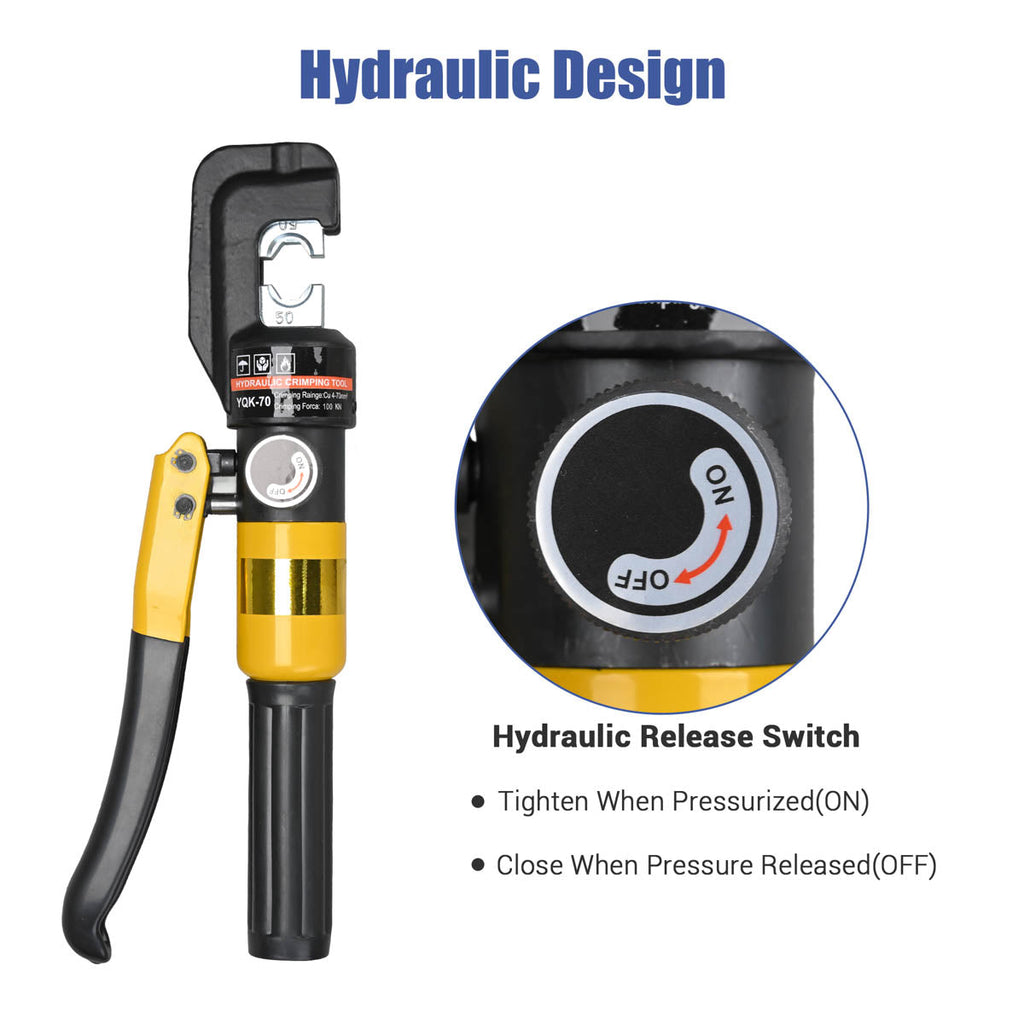

  • Providing 10-ton maximum crimping power to crimp wires easily, controlled by a rotary switch knob for quick manual release, or the automatic function which releases it automatically when maximum pressure is achieved
  • Hydraulic crimper is much easier than using a hand crimping

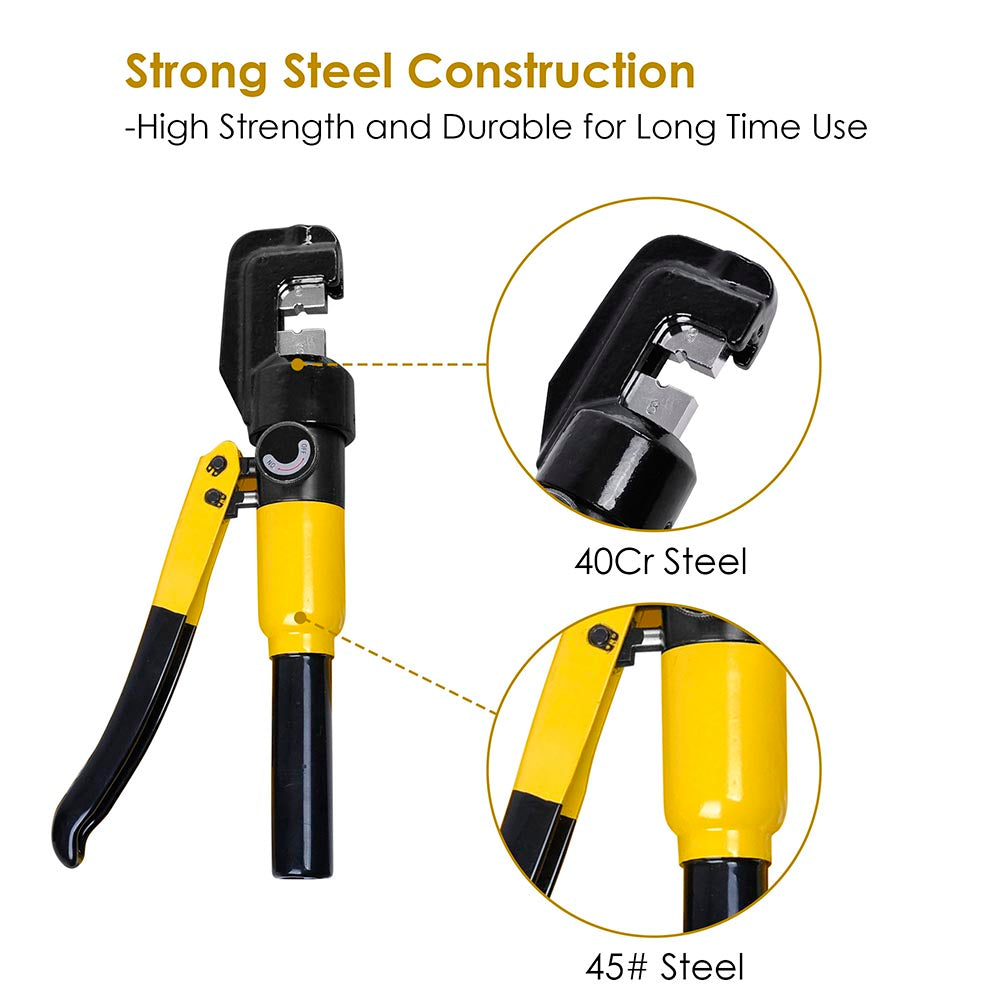

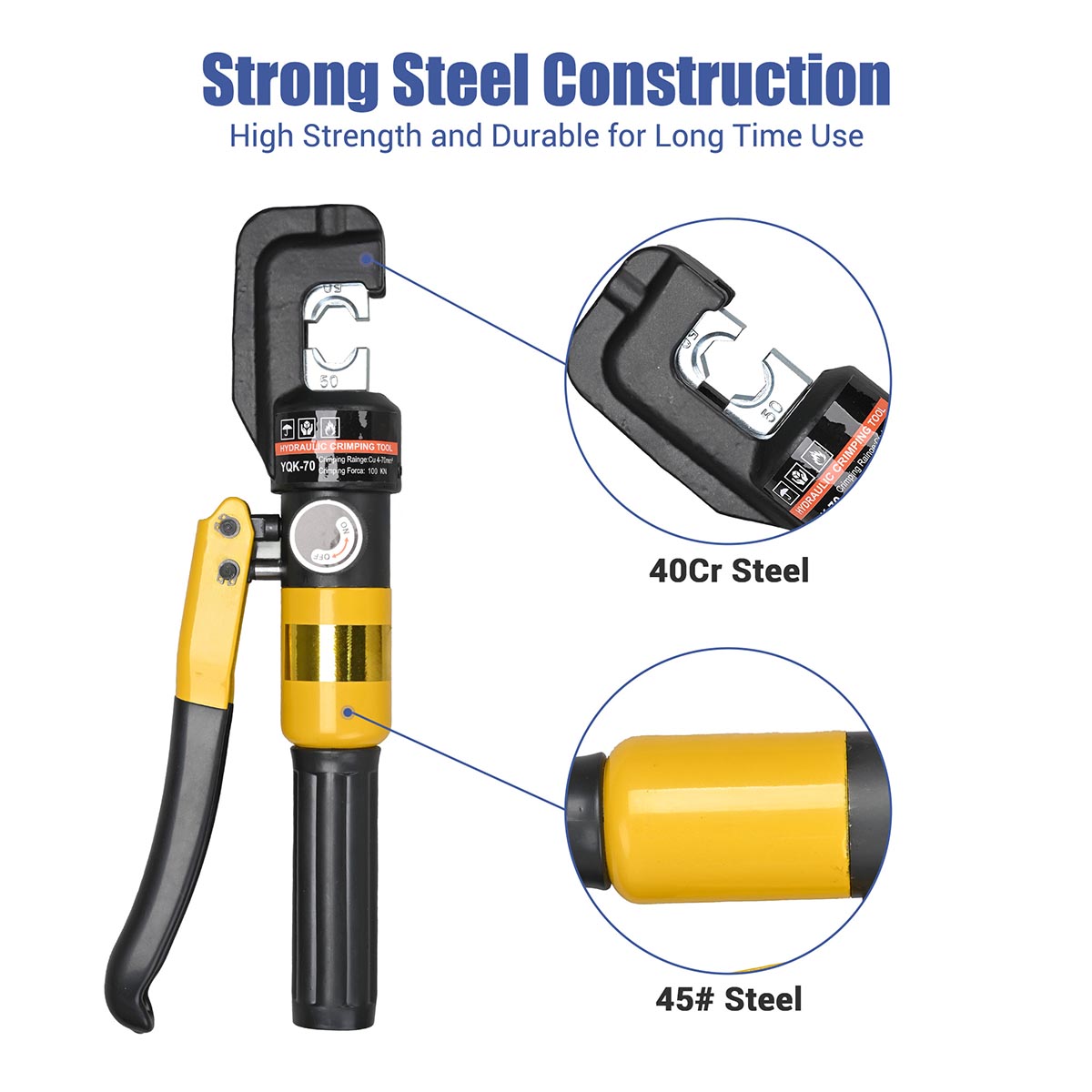

• Strong Steel Construction - Crimper features heat-treated 45# steel body and 40Cr steel crimping head for ensuring high strength and good toughness, durable hardened steel dies with galvanized finish for high resistance against rust, corrosion, and wear-and-tear
• Convenient & Portable

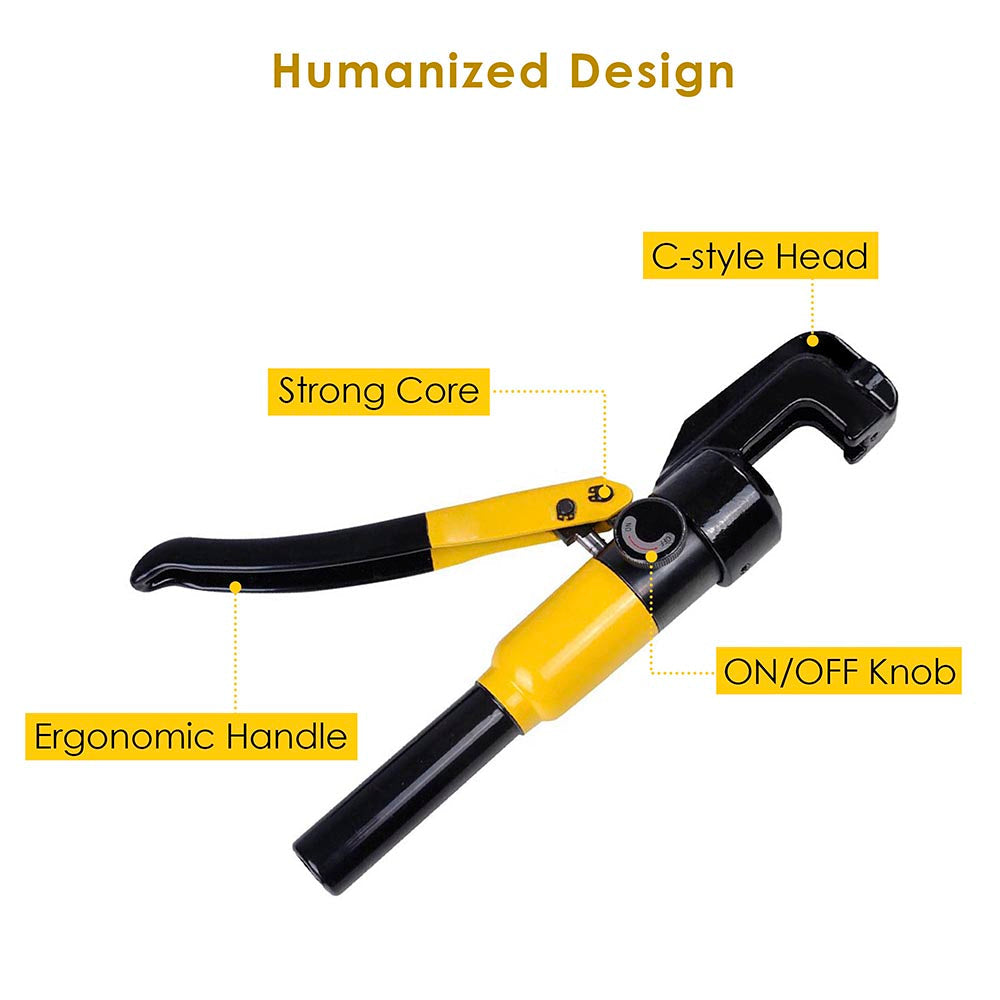

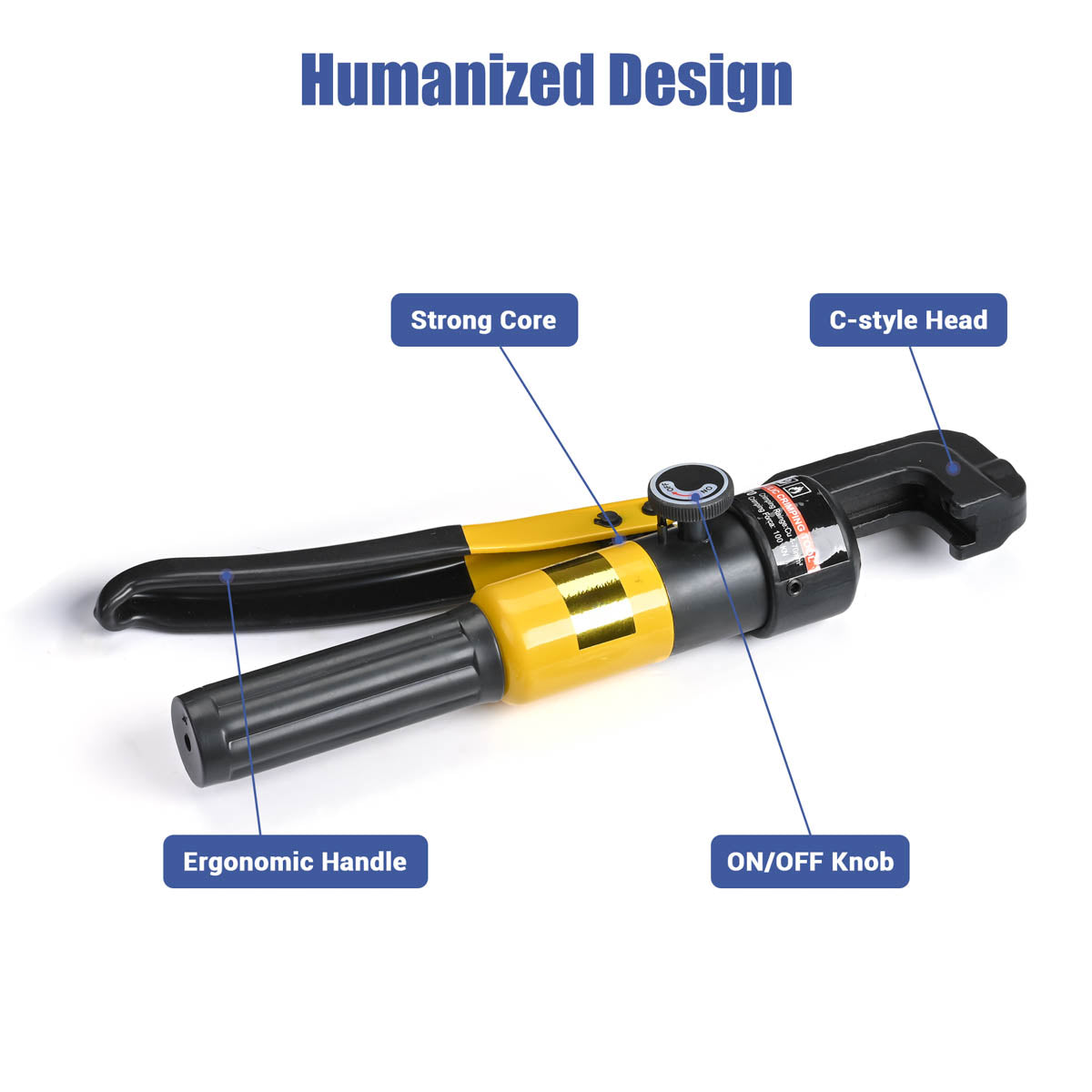

  • C-style head for easy changing the dies and fixing the wire in position
  • Long ergonomic handle for convenient and labor-saving operation

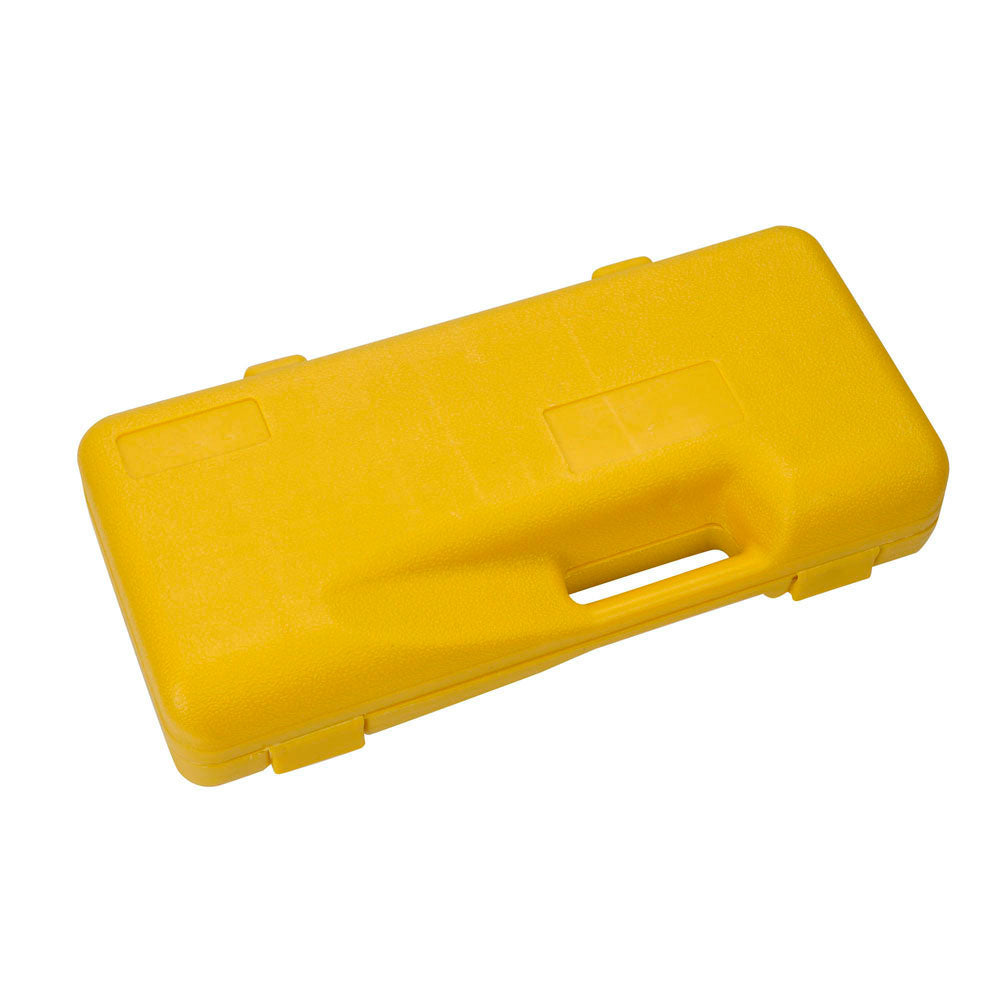

  • Blow-molded carrying case with handle for easy storage & transportation and keeping all accessories in place

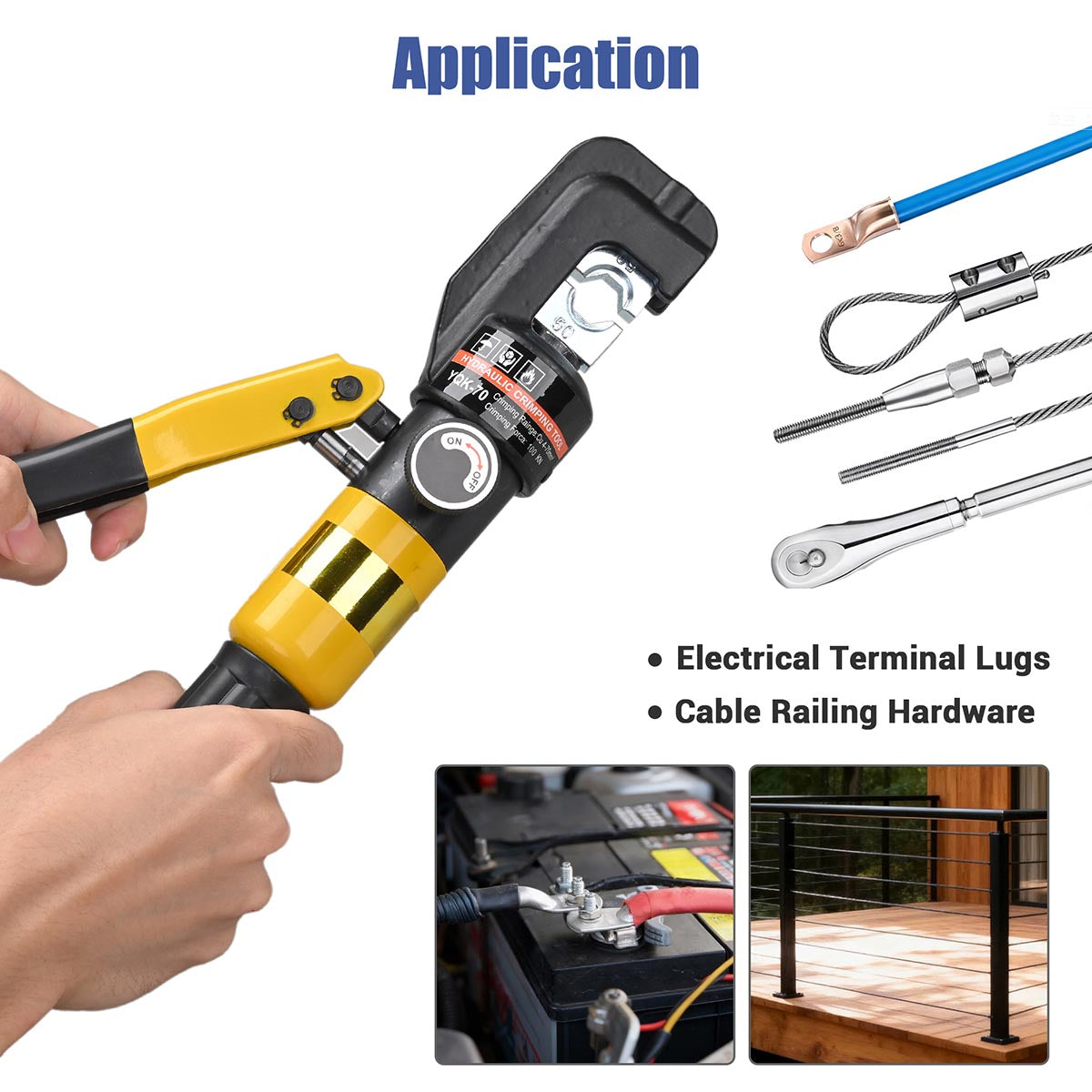

• Widely used for crimping copper and aluminum welding cables, power wires and other electrical cables which are applied on building wiring, connecting battery with wire

Product Details:

• Max pressure: 10 Ton

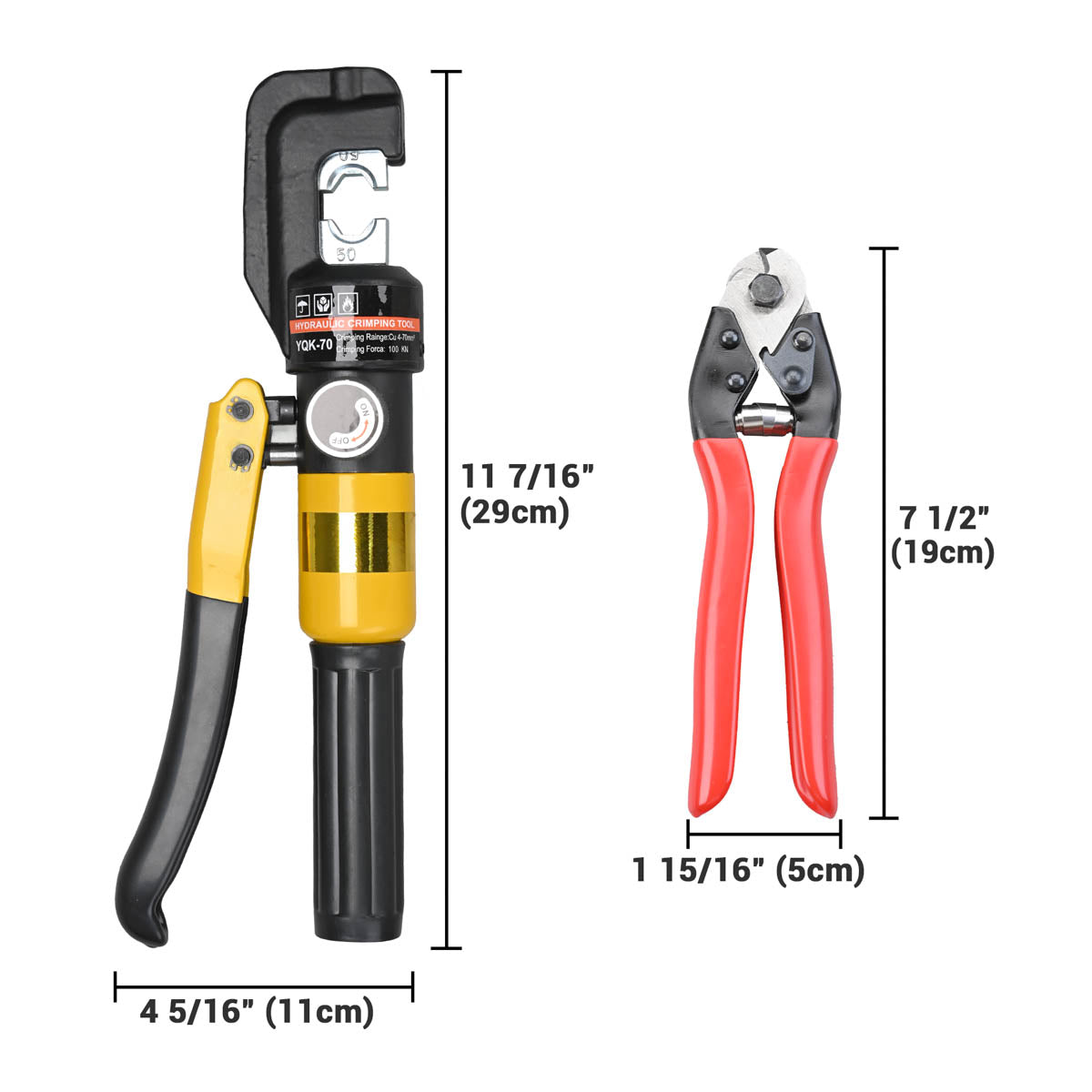

• Overall Dimension(LxWxH): 11 7/16" x 4 5/16" x 2 1/2"

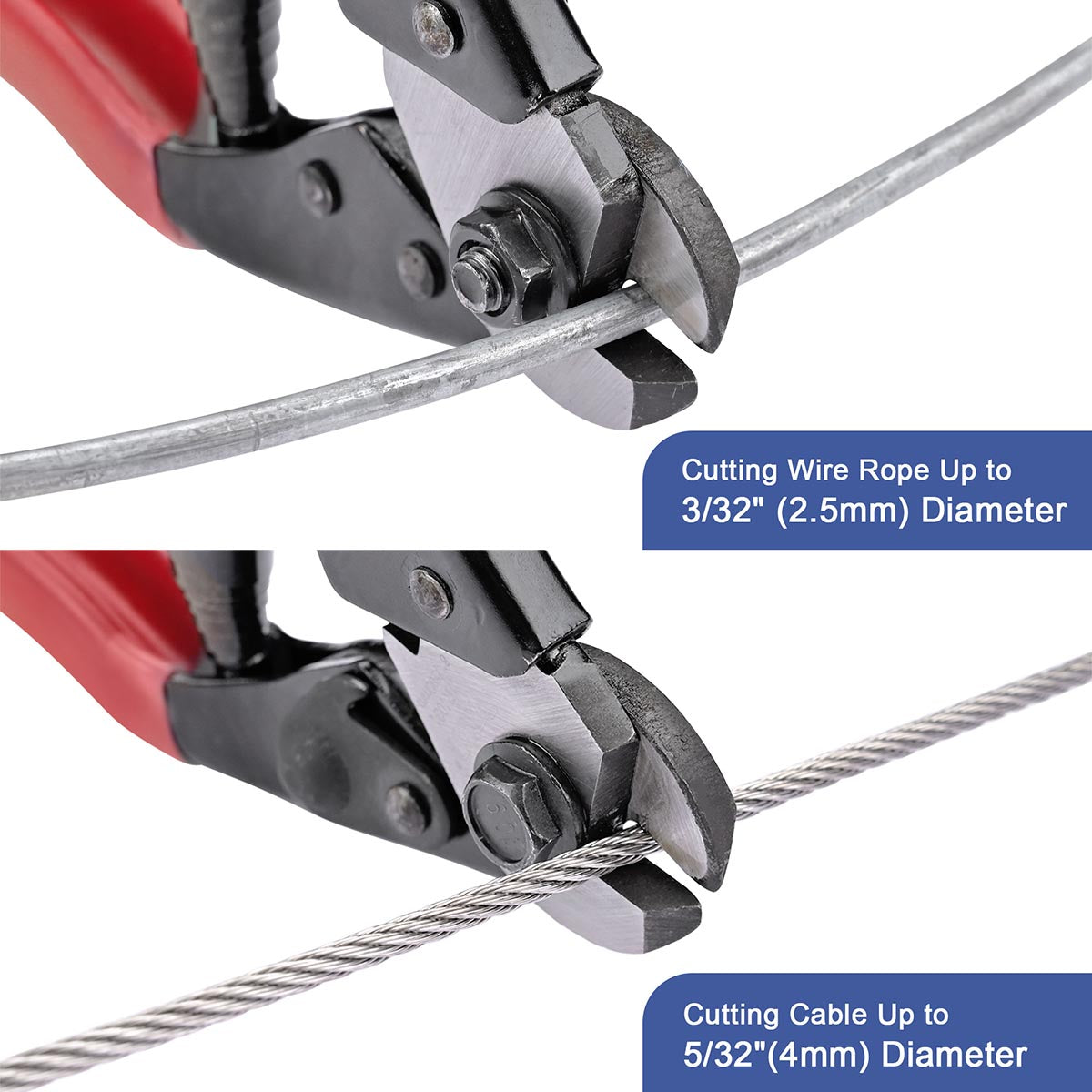

• Wire Cutter Dimension(LxWxH): 7 1/2" x 1 15/16" x 7/8"

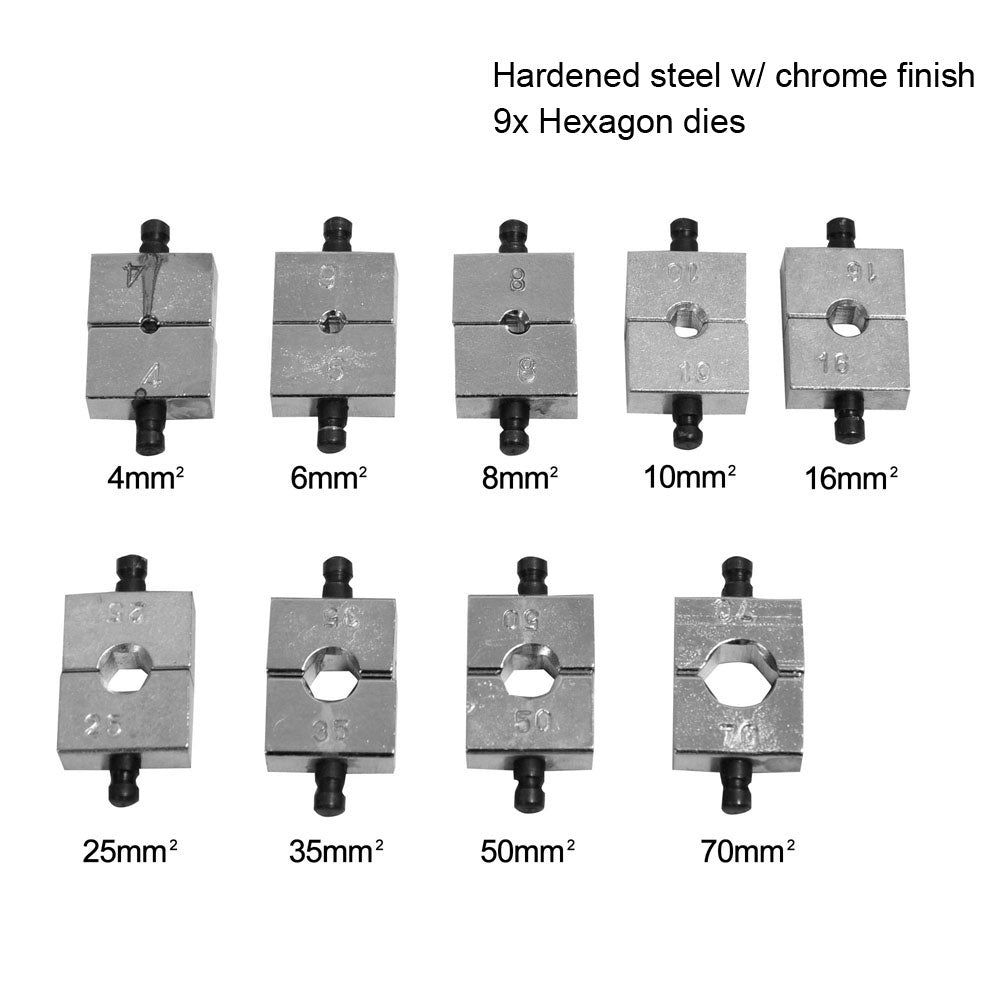

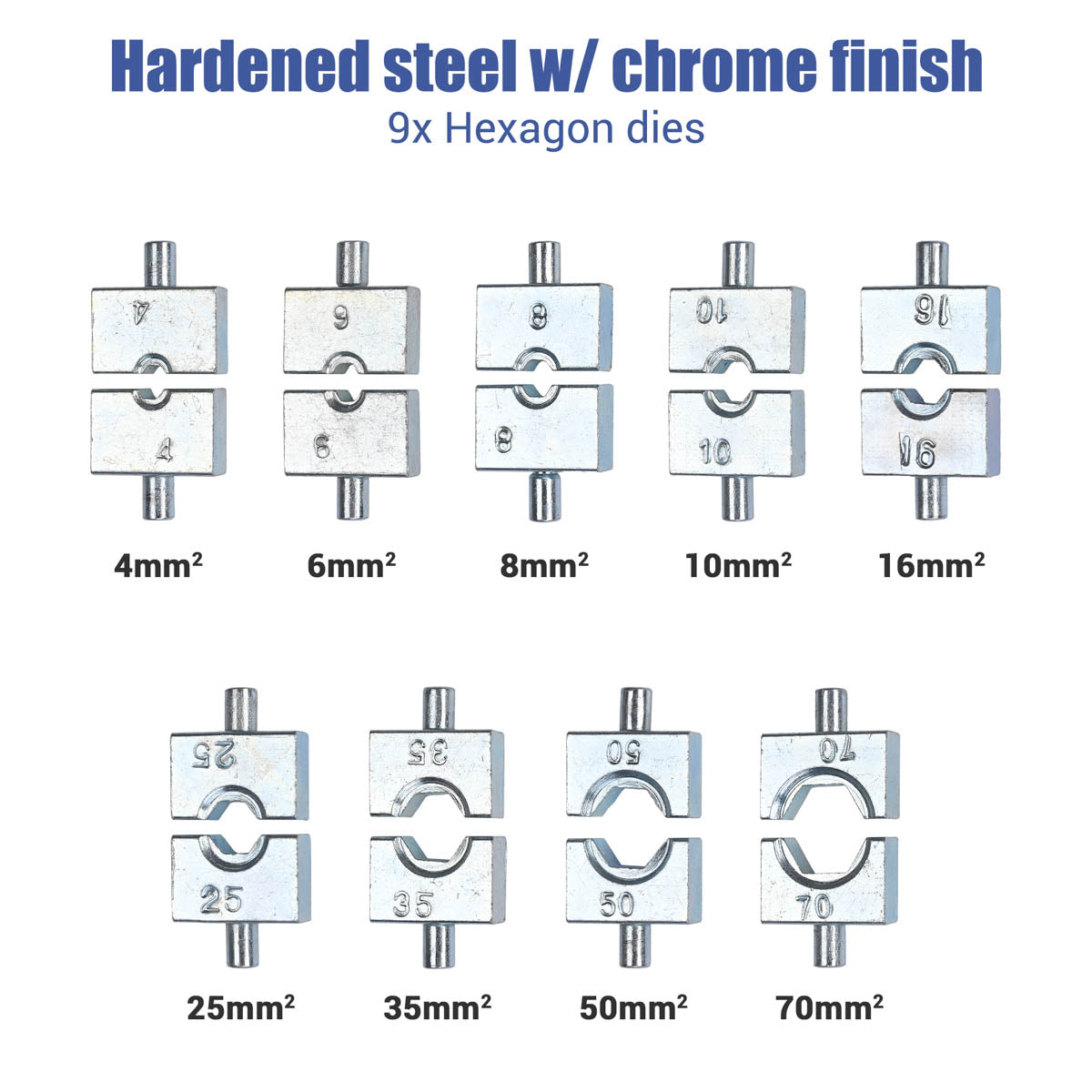

• Dies Size: 4, 6, 8, 10, 16, 25, 35, 50, 70 mm2

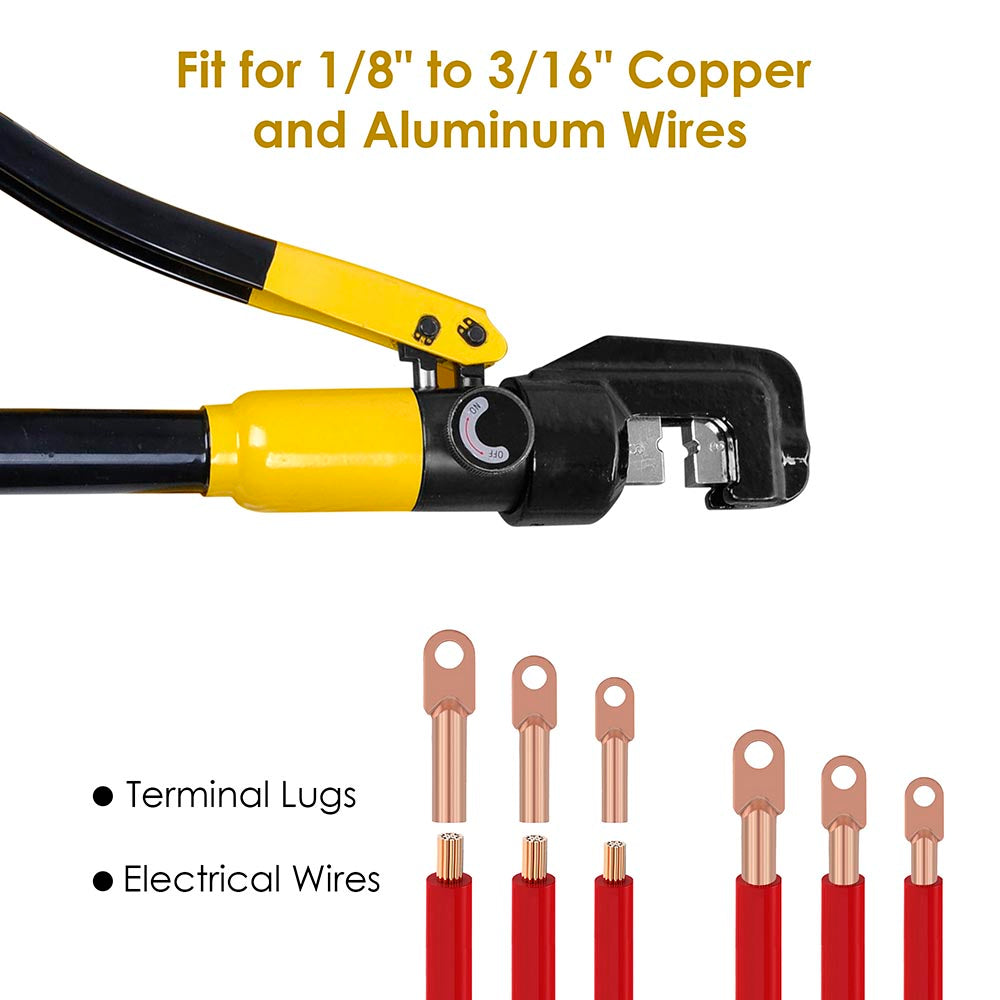

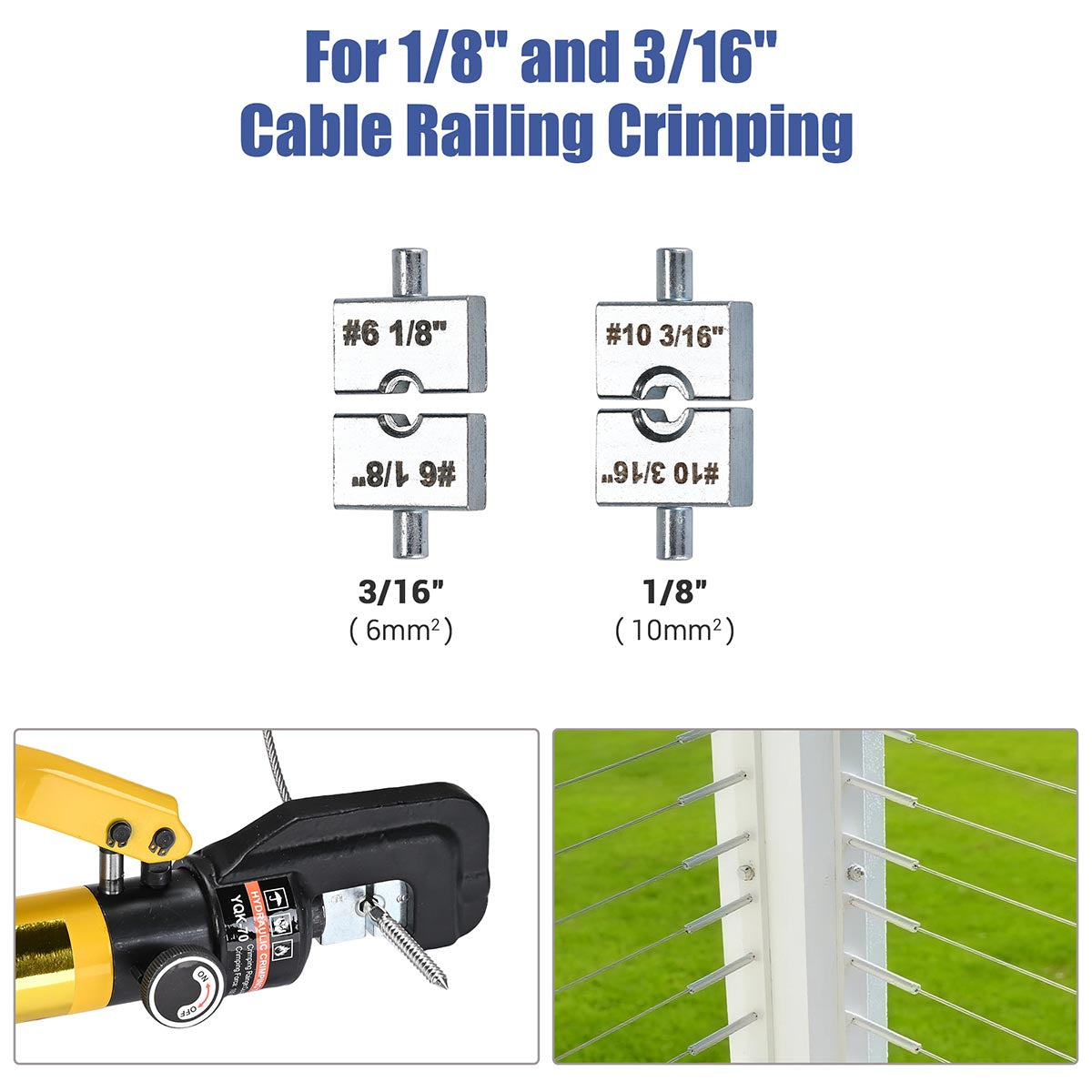

• Fits for: 1/8" to 3/16" (12 AWG to 2/0 AWG) Copper & Aluminum Wires
• Stroke Capacity: 3/8" (10mm)
• Material: 45# Steel, 40Cr Steel
• Net Weight: 6.8 Lbs

Reference:

AWG	MM2
12	4
10	6
10 - 8	8
8	10
6	16
4	25
2	35
1/0	50
2/0	70

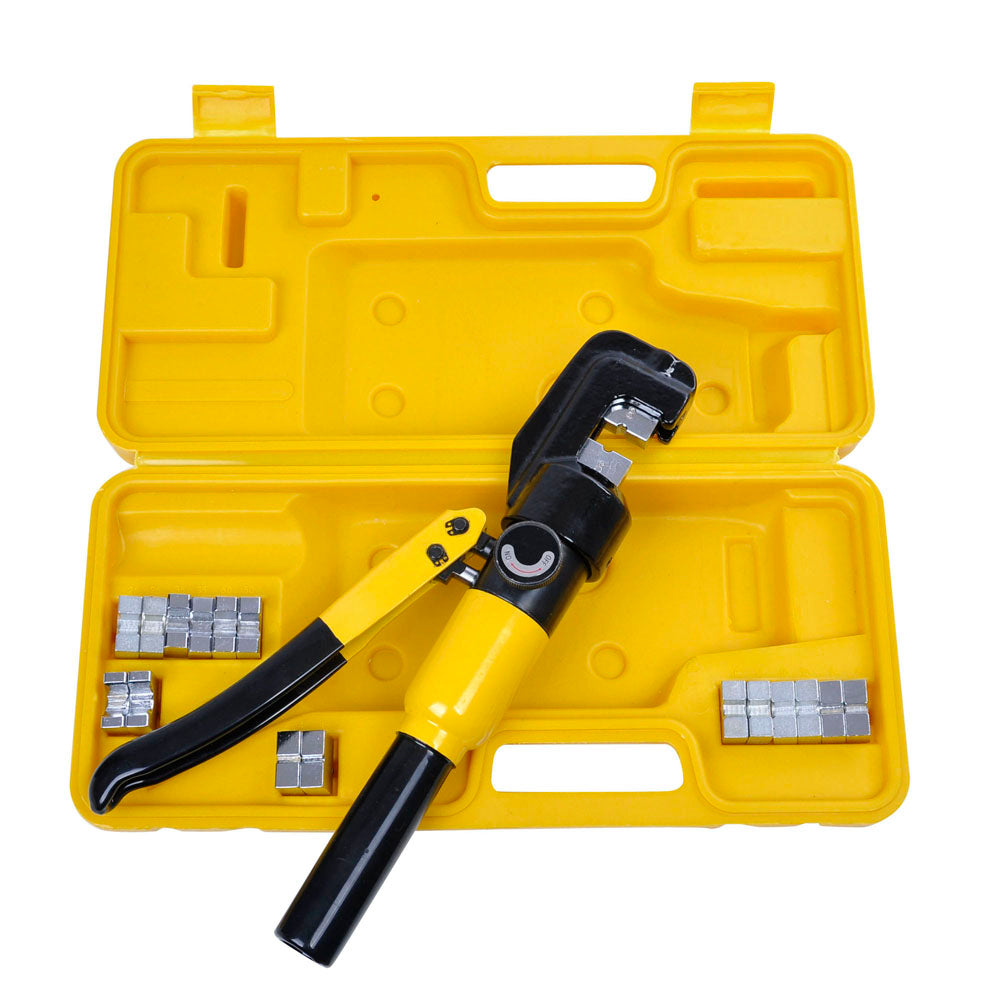

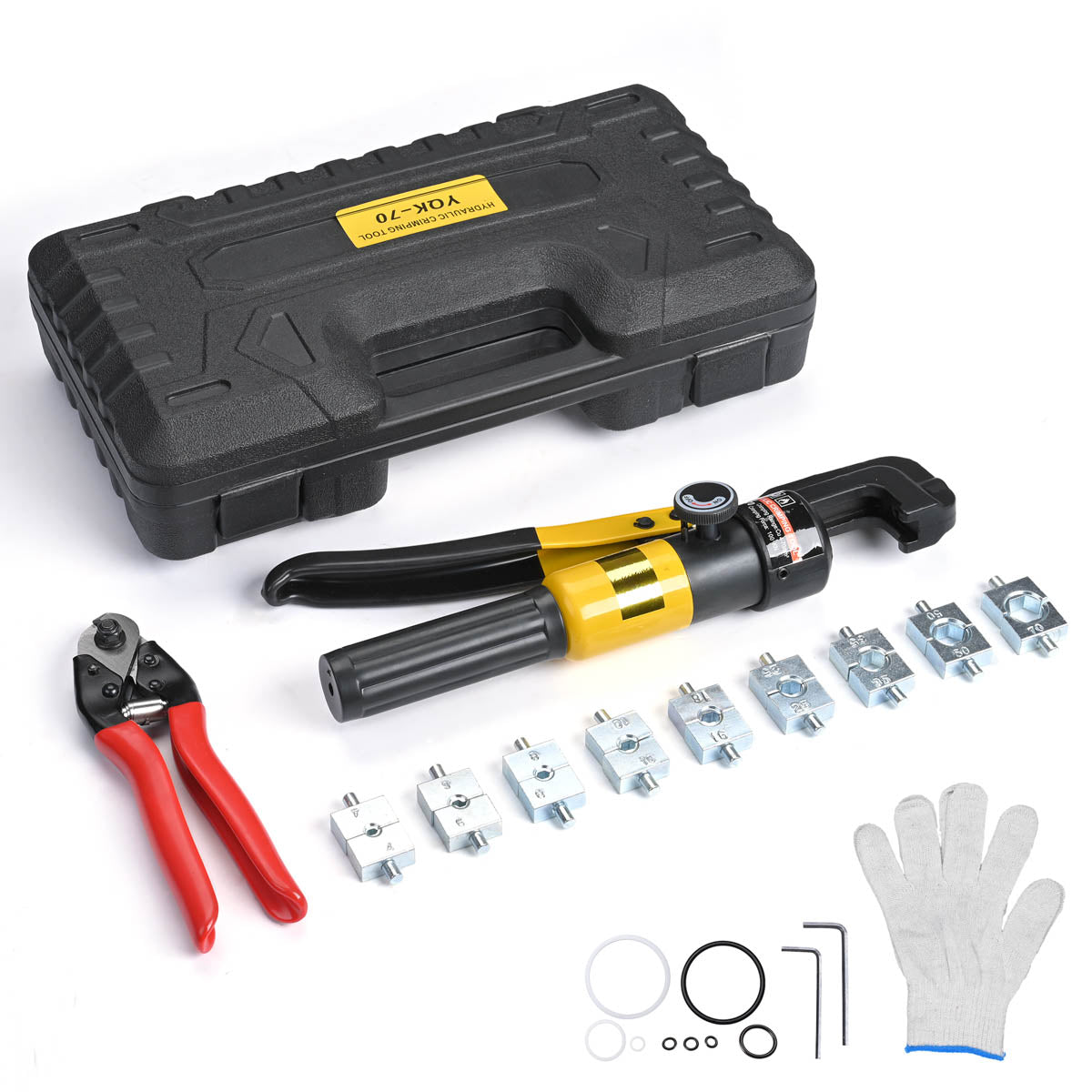

Also In The Box:

• 1x Hydraulic Crimper
• 9 Pairs of Dies
• 1 Set of Seal Rings
• 1x Carry Box

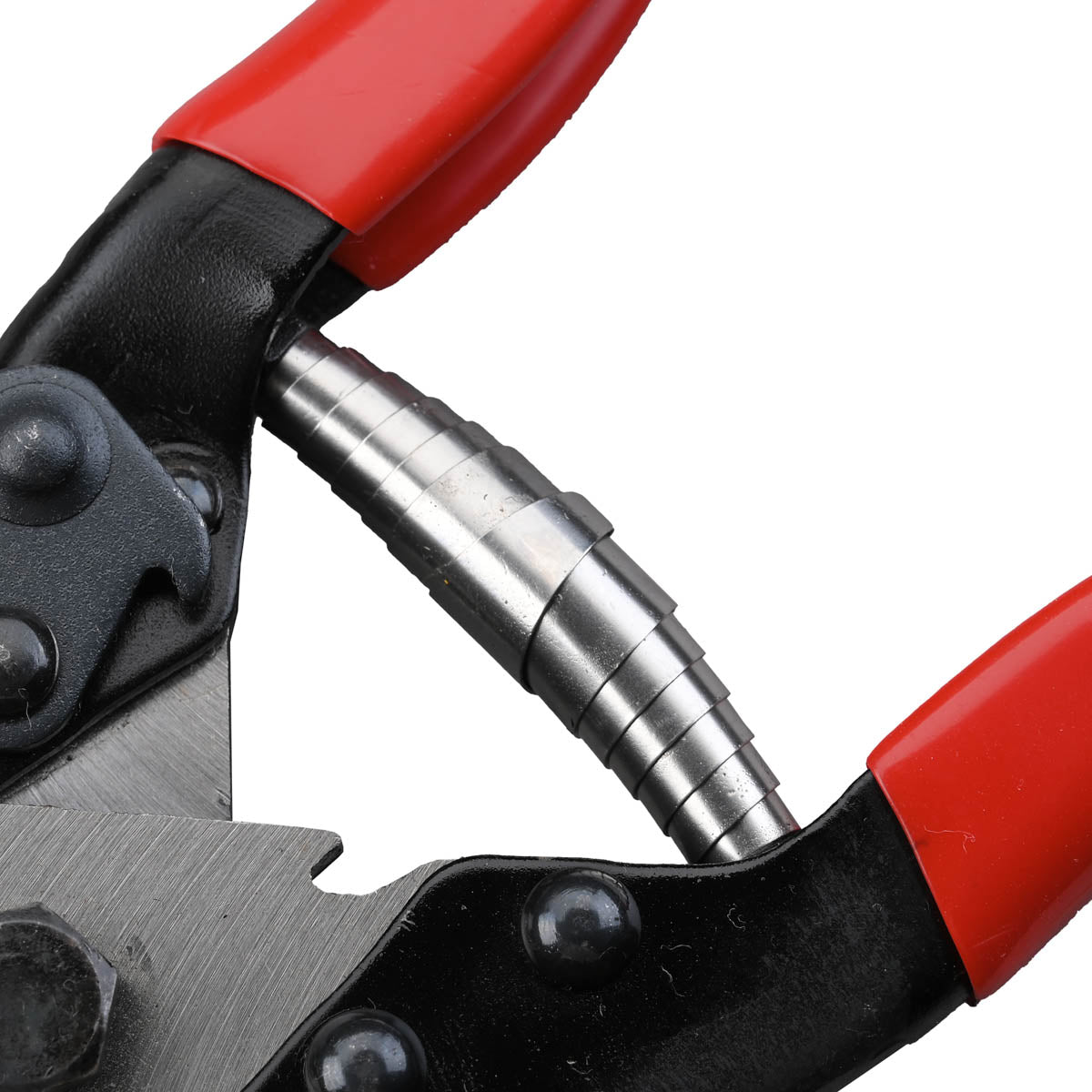

• 1x Cable Cutter
• 2x Gloves
• 2x Allen Keys
• 1x Manual

Notice: Do Not operate the pump after ram motion stops. Continuing to operate the pump lever after the ram stops will damage the ram

Shipping Disclaimer: Due to the size and weight of this product, it may be shipped in multiple packages. Packages may be delivered separately by the carrier.
